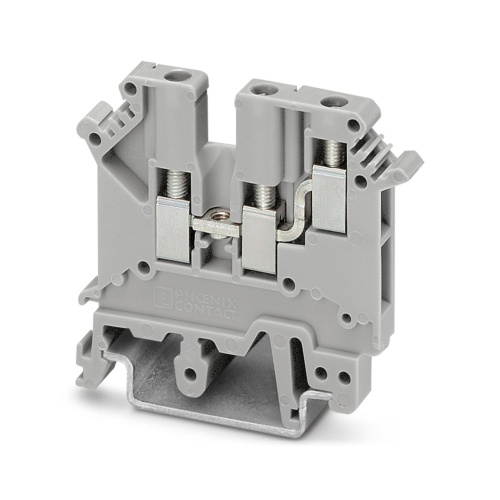

Phoenix Contact 3002225 Feed-through terminal block UK 3-TWIN
Normally In Stock
Code: 41062
UK 3-TWIN Phoenix Contact 3002225 Feed Through Terminal Block - UK 3-TWIN Screw Connection 2 Level 5.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 400 Volt, 24 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.55
Sale Price
$5.46
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3002225 A feed-through terminal block with a nominal voltage of 400V and a maximum current rating of 24A features screw connections at one level, accommodating cross sections ranging from 0.2mm² to 2.5mm². It is designed for mounting on NS35/7.5, NS35/15, or NS32 platforms, with a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
3
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
14
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features

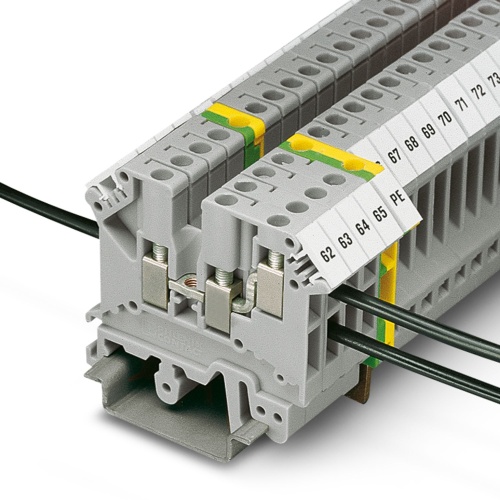

These twin modular terminal blocks are designed for the basic task of potential branching
Universal foot for mounting on NS 35.. or NS 32... DIN rails
Two independent conductor connections can be used on the control cabinet side
Easy connection of different types of conductors with different cross sections
Can be bridged in the terminal center, even with neighboring feed-through terminal blocks aligned
Downloads
Phoenix 3002225 CAD data International.stpPhoenix 3002225 Manufacturers declaration English.pdfPhoenix 3002225 Manufacturers declaration International.pdfPhoenix 3002225 Safety note English.pdfPhoenix 3002225 Tender Text English.zipPhoenix 3002225 CAD data International.pdfPhoenix 3002225 CAD data International.dxf
