Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

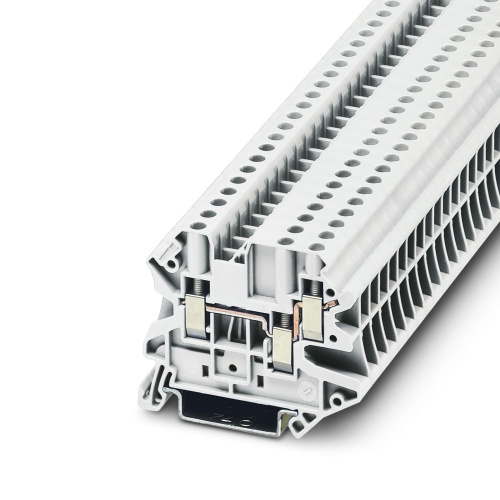

Phoenix Contact 1079168 Feed-through terminal block UT 4-TWIN WH
Normally In Stock
Code: 41061
UT 4-TWIN WH Phoenix Contact 1079168 Feed Through Terminal Block - UT 4-TWIN WH Screw Connection 1 Level 6.2 mm with 3 Connections. Not Grounded, Not Fused White. 500 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$2.24
Sale Price
$1.87
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1079168 The feed-through terminal block has a nominal voltage of 500 V and a maximum current rating of 32 A, supporting up to three connections, secured via screw connection, with a rated cross-sectional area ranging from 0.14 mm² to 6 mm². It comes in various mounting types, including NS 35/7.5 and NS 35/15, and is colored white.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
White
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
User-friendly implementation of all potential branching tasks
Tested for railway applications
Downloads
Phoenix 1079168 CAD data International.dxfPhoenix 1079168 CAD data International.pdfPhoenix 1079168 CAD data International.stpPhoenix 1079168 Manufacturers declaration International-2.pdfPhoenix 1079168 Manufacturers declaration International.pdfPhoenix 1079168 Safety note English.pdfPhoenix 1079168 Tender Text English.zip
