Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

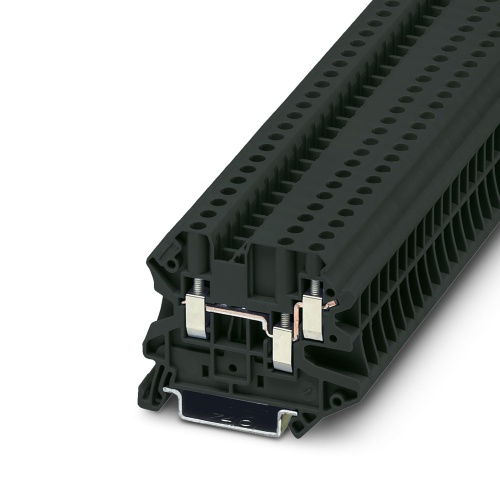

Phoenix Contact 1079167 Feed-through terminal block UT 4-TWIN BK
Normally In Stock
Code: 41060
UT 4-TWIN BK Phoenix Contact 1079167 Feed Through Terminal Block - UT 4-TWIN BK Screw Connection 1 Level 6.2 mm with 3 Connections. Not Grounded, Not Fused Black. 500 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$2.24
Sale Price
$1.87
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1079167 The terminal block features a feed-through design with a nominal voltage of 500 V and a maximum current capacity of 32 A, accommodating up to three connections via screw attachments. The cross-sectional rating ranges from 0.14 mm2 to 6 mm2, while it is mounted using NS 35/7,5 or NS 35/15 types and has a black color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Min Wire Size
26
Terminal Block Component Color
Black
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
User-friendly implementation of all potential branching tasks
Tested for railway applications
Downloads
Phoenix 1079167 Tender Text English.zipPhoenix 1079167 Safety note English.pdfPhoenix 1079167 Manufacturers declaration International.pdfPhoenix 1079167 Manufacturers declaration International-2.pdfPhoenix 1079167 CAD data International.stpPhoenix 1079167 CAD data International.pdfPhoenix 1079167 CAD data International.dxf
