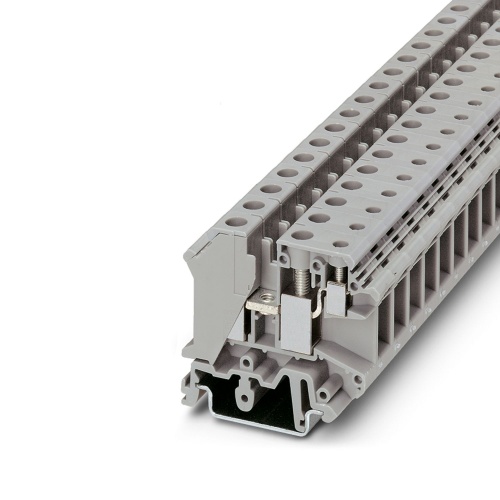

Phoenix Contact 3001381 Feed-through terminal block UK 10-PLUS
Normally In Stock
Code: 40677
UK 10-PLUS Phoenix Contact 3001381 Feed Through Terminal Block - UK 10-PLUS Screw Connection 2 Level 10.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 800 Volt, 32 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$10.69
Sale Price
$8.91
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3001381 The feed-through terminal block has a nominal voltage of 800 V and a nominal current capacity of 57 A, with connections made using a screw connection at one level. The rated cross-section is 10 mm2, spanning from 0.5 mm2 to 16 mm2, while the first-level connections on the right side have a rated cross-section of 4 mm2 ranging from 0.2 mm2 to 6 mm2. Mounting types include NS 35/7.5, NS 35/15, and NS 32, with a color option available in gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Connections
3
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
20
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
These twin modular terminal blocks are designed for the basic task of potential branching
Universal foot for mounting on NS 35.. or NS 32... DIN rails
Two independent conductor connections can be used on the control cabinet side
Easy connection of different types of conductors with different cross sections
Can be bridged in the terminal center, even with neighboring feed-through terminal blocks aligned
Downloads
Phoenix 3001381 CAD data International.dxfPhoenix 3001381 CAD data International.pdfPhoenix 3001381 CAD data International.stpPhoenix 3001381 Manufacturers declaration English.pdfPhoenix 3001381 Manufacturers declaration International.pdfPhoenix 3001381 Safety note English.pdfPhoenix 3001381 Tender Text English.zip
