Code: 40609

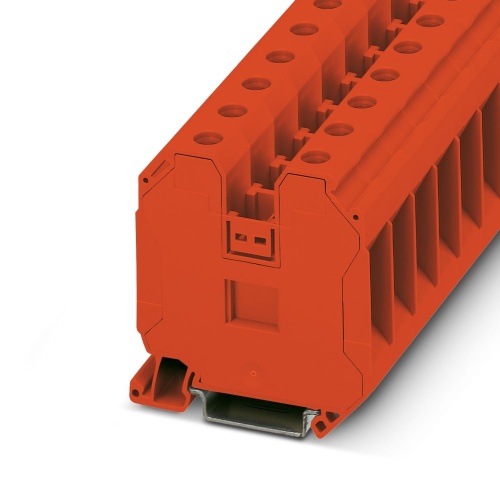

Phoenix Contact 3044227 Feed-through terminal block UT 35 RD
Normally In Stock
UT 35 RD Phoenix Contact 3044227 Feed Through Terminal Block - UT 35 RD Screw Connection 1 Level 16 mm with 2 Connections. Not Grounded, Not Fused Red. 1000 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$6.54
Sale Price
$5.45
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044227 A feed-through terminal block features a nominal voltage of 1000 V and nominal current capacity of 125 A, accommodating up to two connections secured via screw connection. The rated cross-sectional area ranges from 1.5 mm2 to 50 mm2, with mounting options including NS 35/7,5 and NS 35/15. Typically colored red, this terminal block is designated as part number 35/7,5 or 35/15.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
16 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Red
Terminal Block Min Wire Size
16
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Model Type
UT
Features
The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
The reducing bridges can be used to connect terminal blocks with different connection technologies, e.g., UT 35 screw terminal block with Push-in technology 2,5 Push-in terminal blocks, to form power blocks
Downloads
Phoenix 3044227 CAD data International.dxfPhoenix 3044227 CAD data International.pdfPhoenix 3044227 CAD data International.stpPhoenix 3044227 Certification English-2.pdfPhoenix 3044227 Certification English.pdfPhoenix 3044227 Manufacturers declaration International-2.pdfPhoenix 3044227 Manufacturers declaration International.pdfPhoenix 3044227 Safety note English.pdfPhoenix 3044227 Tender Text English.zipPhoenix 3044227 User instructions for the Ex Area International.pdf
