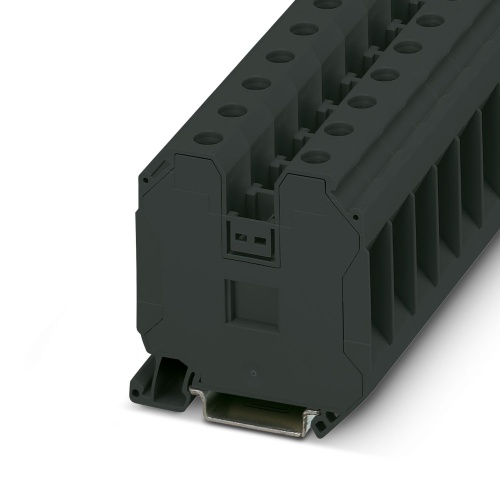

Phoenix Contact 3044226 Feed-through terminal block UT 35 BK
Normally In Stock
Code: 40608
UT 35 BK Phoenix Contact 3044226 Feed Through Terminal Block - UT 35 BK Screw Connection 1 Level 16 mm with 2 Connections. Not Grounded, Not Fused Black. 1000 Volt, 125 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$6.47
Sale Price
$5.39
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3044226 The terminal block features a feed-through design with a nominal voltage of 1000 V and a nominal current capacity of 125 A. It has two connections made using a screw connection method and can accommodate cross-sections ranging from 1.5 mm2 to 50 mm2. The mounting type includes NS 35/7,5 and NS 35/15, while the terminal block is colored black.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
16 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Component Color
Black
Terminal Block Min Wire Size
16
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
The reducing bridges can be used to connect terminal blocks with different connection technologies, e.g., UT 35 screw terminal block with Push-in technology 2,5 Push-in terminal blocks, to form power blocks
Downloads
Phoenix 3044226 CAD data International.dxfPhoenix 3044226 CAD data International.pdfPhoenix 3044226 CAD data International.stpPhoenix 3044226 Certification English-2.pdfPhoenix 3044226 Certification English.pdfPhoenix 3044226 Manufacturers declaration International-2.pdfPhoenix 3044226 Manufacturers declaration International.pdfPhoenix 3044226 Safety note English.pdfPhoenix 3044226 Tender Text English.zipPhoenix 3044226 User instructions for the Ex Area International.pdf
