Code: 390877

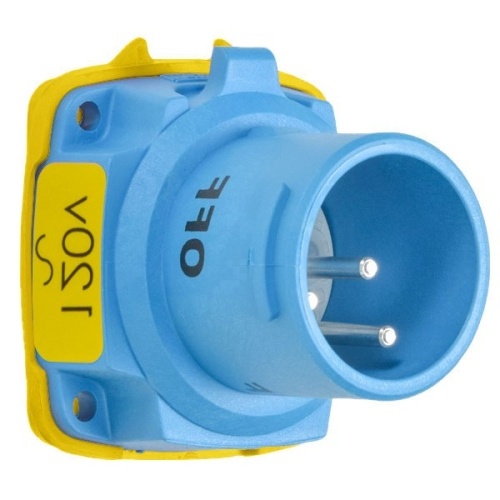

Meltric 63-18125-K16-A155 Switch-Rated Inlet - 120 VAC, 20 Amp, Poly
Normally In Stock
Meltric 63-18125-K16-A155 - Poly - Blue - Min Wire Size: 14 AWG - Max Wire Size: 12 AWG - 120 Volt - 20 Amp - 1P+N+G - 60 Hz - IP 66, IP 67,IP 69 - Size: 1 - With No Lockout Hole
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$58.45
Sale Price
$48.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 63-18125-K16-A155 - DSN20 Series - Switch Rated,Branch Circuit Disconnect Switch,Motor Circuit Disconnect Switch - 0.75 HP - (-40F°-140F°) - UL 1682, UL 2682, cCSAus, C22.2 No. 182.1-13 - Type 4X
Specifications
Receptacle Color
Blue
Receptacle Amperage
20 Amp
Receptacle IP Rating
IP 66
Receptacle IP Rating
IP 67
Receptacle Contact Configuration
1P+N+G
Receptacle Voltage
120 VAC
Receptacle NEMA Type
Type 4X
Receptacle IP Rating
IP 69
Receptacle HP Rating
0.75 HP
Receptacle Size
Size 1
Receptacle Composition
Poly
Receptacle Min Wire Size
14 AWG
Receptacle Max Wire Size
12 AWG
Manufacturer
Meltric
Component
Inlet
Meltric Series
DSN20 Switch-Rated
Features
Helps support safer equipment connection and disconnection when properly applied
Designed for use with compatible switch-rated receptacles, plugs, handles, covers, and mounting accessories
Compatibility depends on the complete inlet, receptacle/connector, wiring, enclosure, and power-distribution system
Poly construction
