Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 157910

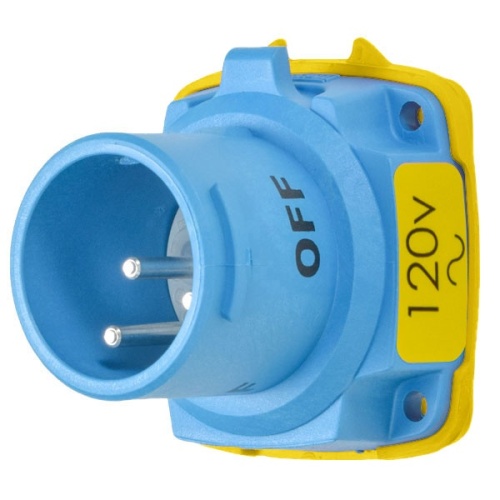

Meltric 63-18125-K16 DSN20 Switch-Rated Inlet 120 VAC 20A Blue Poly
Normally In Stock
Meltric 63-18125-K16 Switch-Rated DSN20 Inlet 120 VAC 20A Blue Poly
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$60.50
Sale Price
$50.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 63-18125-K16 Switch-Rated DSN20 Inlet 120 VAC 20A Size 1 1P+N+G Blue Poly IP66,IP67,IP69 Screw Terminal UL 498,UL 1682
Specifications
Receptacle Color
Blue
Receptacle Amperage
20 Amp
Receptacle Contact Configuration
1P+N+G
Receptacle Voltage
120 VAC
Receptacle NEMA Type
Type 4X
Receptacle Wiring Connection Type
Screw Terminal
Receptacle IP Rating
IP66
Receptacle IP Rating
IP67
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Size
Size 1
Receptacle Composition
Poly
Receptacle Min Wire Size
14 AWG
Receptacle IP Rating
IP69
Receptacle Max Wire Size
12 AWG
Manufacturer
Meltric
Component
Inlet
Meltric Series
DSN20 Switch-Rated
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
