Code: 37986

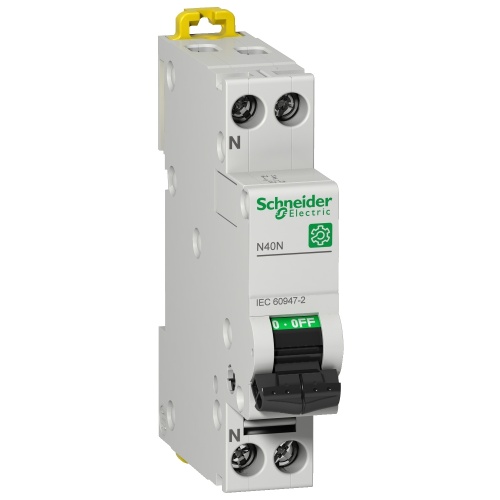

Schneider Electric M9P22620 Single Pole 20 Amp Breaker
Normally In Stock
Schneider Electric M9P22620 Multi 9 Miniature 20 Amp Single Pole + N Non UL Breaker with up to 240 VAC and Din Rail mount. C Curve 7-10 x Amp Rating Protection.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$234.74
Sale Price
$195.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric M9P22620 Multi 9 Miniature 20 Amp Single Pole + N Non UL Breaker with up to 240 VAC and Din Rail mount. C Curve 7-10 x Amp Rating Protection.
Specifications
Breaker Mount Type
Din Rail
Breaker Mechanism Type
Toggle
Breaker Switching Type
Thermomagnetic
Breaker Number of Poles
Single Pole
Breaker Trip Speed
Normal Trip
Breaker Overcurrent Protection Rating
C Curve 7-10 X Amp Rating
Breaker UL Rating
Non UL Breaker
Breaker Unit
Complete Unit
Breaker Voltage Rating
240 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This Multi9 N40N is a low voltage miniature circuit breaker (MCB)
It is a 1P+N circuit breaker with 1 protected pole, 20A rated current and C tripping curve
The Icu rated short circuit breaking capacity is up to 10kA at 240VAC conforming to EN/IEC 60898-1 standard
This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2
It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats
This product protects from short circuit, earth leakage and overload
Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life
This product is dedicated for original equipment manufacturers (OEM) and control panel builders
It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles
The Ue operational voltage is 240VAC
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 4kV
The operating frequency is 50Hz or 60Hz
The product can be clipped on a DIN rail
Its width is 2 pitches of 9mm
Pollution degree is 3
The product colour is light grey (RAL7035)
The dimensions are (W) 18mm x (H) 81mm x (D) 78mm
The weight is 0.115kg
It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals
The operating temperature is -25°C to 70°C
The storage temperature is -40°C to 70°C.
