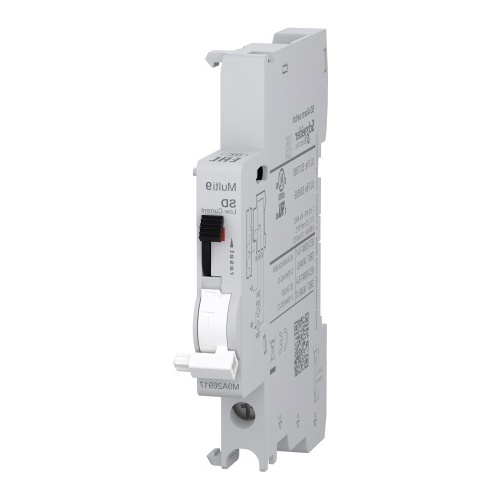

Schneider Electric M9A26917 - Auxiliary contact, Multi9 M9A, SD, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
Normally In Stock
Code: 696405
Schneider Electric M9A26917 - Auxiliary contact, Multi9 M9A, SD, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$117.67
Sale Price
$98.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric M9A26917 - Auxiliary contact, Multi9 M9A, SD, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection
Specifications
Manufacturer
Schneider Electric
Component
Fault Contact
Features
This Multi9 electrical auxiliary is a modular fault contact used as remote indication of tripping upon a fault of the associated device
The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 250VAC, and from 2mA to 100mA at 24VDC to 220VDC
It has 1 position switch with contacts type 1 C/O
It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures
This fault contact is compatible with Multi9 ranges such as C60BP, C60SP, C60 and N40
The SD is either used for device short name or compatibility code
The mechanical indicator is provided on the product for signalling (Local)
It has a screw clamp terminal connection at bottom
The connection allows rigid copper cable
The cable cross section capacity is from 1mm² to 4mm²
It has a screw clamp terminal connection at bottom
The connection allows flexible copper cable
The cable cross section capacity is from 0.5mm² to 2.5mm²
It has a screw clamp terminal connection at bottom
The connection allows rigid copper cables (2 cables)
The cable cross section capacity is 2.5mm²
It has a screw clamp terminal connection at bottom
The connection allows flexible with ferrule copper cables (2 cables)
The cable cross section capacity is 1.5mm²
The rated insulation voltage (Ui) is up to 500V
It has a rated impulse withstand voltage (Uimp) of 4kV
The width in 9mm pitches is 1
The dimensions are (W) 9mm x (H) 86mm x (D) 73mm
The product colour is white (RAL 9003)
The pollution degree is 3
The level of tropicalisation is treatment 2
The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type
According to IEC 60529 standard, the IP degree of protection is IP20
The operating temperature is from -25°C to +70°C
The storage temperature is from -40°C to +85°C
This product complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards
This product is certified with CE, UL, CSA and UKCA standards.
