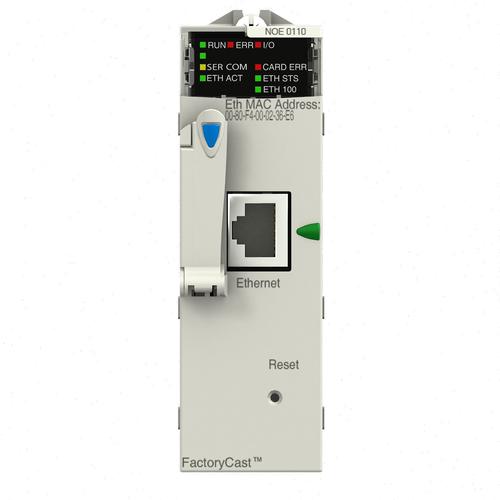

Modicon BMXNOE0110H Ethernet Network Module
Normally In Stock
Code: 37198
Modicon BMXNOE0110H M340 Ethernet Network Module 1 Port RJ45 (NOE) FactoryCast with Conformal Coating for severe environments.: (1) RJ45 10 / 100 Ethernet port, includes memory for configurable web-pages
Condition: New
Usually ships Same Day or Next Day$4180.09
Sale Price
$3483.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
H M340 FactoryCast Module Ethernet 10 Base-T / 100 Base-TX FactoryCast module for Modicon M340 PLC featuring communication services, configurable web server, including documentation and web designer configuration software. Hardened, extended temperature range (-25 to +70 °C/-13 to +158 °F)
Specifications
(Networking Modules) For PLC
Modicon M340
(Networking Modules) Type
Ethernet Module
(Networking Modules) Protocol
Modbus TCPIP
(Networking Modules) # of Ports
1 RJ45 Port
(Networking Modules) Factory Cast
Custom Web Pages Dashboard (Factorycast)
Manufacturer
Schneider Electric
Component
Ethernet Network Module
Features
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC)
This Ethernet TCP/IP network module supports RJ45 10/100 connection
It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply
This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C
It has reset push-button cold control
It is an IP20 rated product
Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc
It weighs 0.2kg
It is suitable for standard and severe environment applications
This product is certified by CE and UL
It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards.
