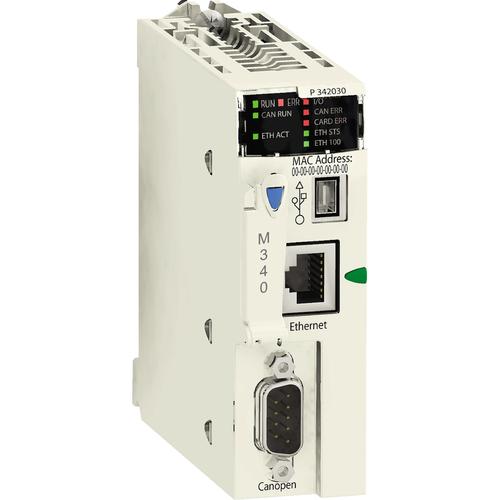

Schneider BMXP3420302H Processor M340
Normally In Stock
Code: 37043
Schneider BMXP3420302H Advanced Level 2 CPU for Schneider M340 Programmable Logic Controller. Hardened and extended temperature.
Condition: New
Usually ships Same Day or Next Day$4249.78
Sale Price
$3541.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider BMXP3420302H Advanced Level 2 CPU for Schneider M340 Programmable Logic Controller. USB terminal port & Memory card slot, 2 comm. ports: Ethernet & CANopen 2 master, delivered with standard memory card. Hardened, extended temperature range (-25 to +70 °C/-13 to +158 °F)
Specifications
PLC Model
Modicon M340
PLC USB Port
1 USB Port
PLC Memory Card
8 Mb Memory Card
PLC Temperature Range
Extended Temp Range
PLC Ram
4 Mb
PLC Level CPU
Level 2 CPU
PLC Communication Ports
2 Comm Ports
PLC Communication Port Type
Modbus Canopen2
PLC Communication Port Type
Modbus TCP
Manufacturer
Schneider Electric
Component
M340 Processor
Features
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC)
It offers a maximum of 4 rack configuration, 36 application specific channels, 63 CANopen slaves and 11 slots
It is a processor module with a current consumption of 135mA at 24V DC, works with internal power supply
This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C
Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules
It is supplied with a memory card for backup of programs, constants, symbols and data
It is an IP20 rated product
The module has 1024 multi-rack, 704 single-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity
It supports up to 800kbps 0m to 40m, 0m to 6m transmission rate
It weighs 0.215kg
It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications
This product is certified by CE
It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards
This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC)
It is supplied with memory card (BMXRMS008MP) backup of programs, constants, symbols and data, internal RAM 4096kB, internal RAM 256kB data, internal RAM 3584kB program constants and symbols
Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions
In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
