Phoenix Contact 2903156 Power supply TRIO-PS-2G/3AC/24DC/40
Normally In Stock
Code: 36896
TRIO-PS-2G/3AC/24DC/40 Phoenix Contact TRIO-PS-2G/3AC/24DC/40. 24 VDC output 40 Amp Power Supply 3-phase 320 -575 Vac input.. Temperature range of -13 F to 158 F. Din rail mount Push-In Connection. (5.12"H x 4.33"W x 7.48"D).
Condition: New
Usually ships Same Day or Next Day$599.94
Sale Price
$499.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

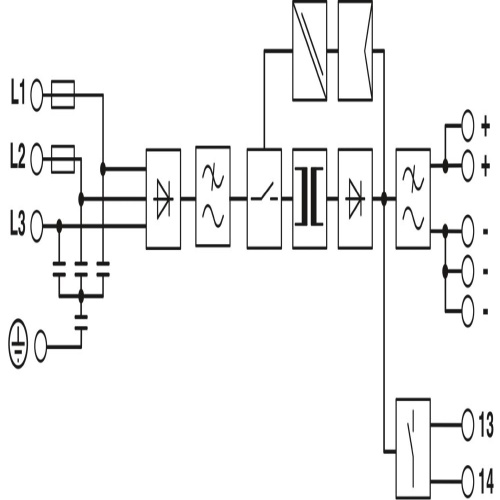

Phoenix Contact 2903156 A primary-switched TRIO power supply designed for DIN rail installation features a 3-phase input and outputs 24V DC at 40A. It also boasts dynamic boost capabilities and includes a fast-connection system that allows for tool-free attachment to both solid and stranded conductors using a ferrule.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
960 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
40 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Voltage Input Range
320 VAC - 575 VAC
Power Supply Amperage Output Range
31-40 Amp
Features
Electrically robust, thanks to high electric strength
Increase system availability, thanks to dynamic boost with 150 % of the nominal current for 5 seconds
Maximum flexibility due to the wide temperature range from -25°C to +70°C and device startup at -40°C
Save time and costs, thanks to the Push-in connection and narrow design
Mechanically robust, thanks to high vibration and shock resistance
Downloads
Phoenix 2903156 CAD data International.dxfPhoenix 2903156 CAD data International.pdfPhoenix 2903156 CAD data International.stpPhoenix 2903156 Data Sheet English.pdfPhoenix 2903156 Manufacturers declaration English.pdfPhoenix 2903156 Manufacturers declaration International-2.pdfPhoenix 2903156 Manufacturers declaration International.pdfPhoenix 2903156 Package Slip International.pdfPhoenix 2903156 Tender Text English.zipPhoenix 2903156 Various English.pdfPhoenix 2903156 Various English.wmv
