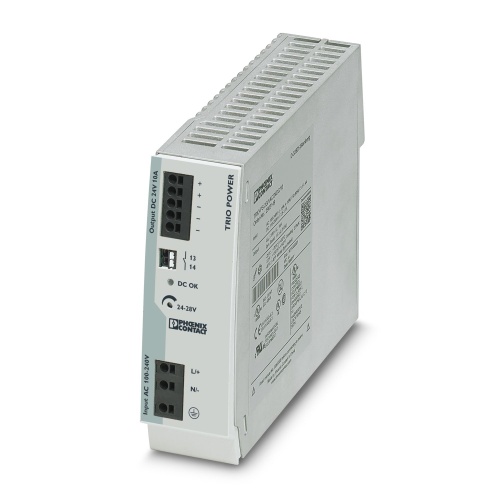

Phoenix Contact 2903145 Power supply TRIO-PS-2G/1AC/24DC/10/B+D
Normally In Stock
Code: 36891
TRIO-PS-2G/1AC/24DC/10/B+D Phoenix Contact TRIO-PS-2G/1AC/24DC/10/B+D. 24 VDC output 10 Amp Power Supply and 85 Vac-264 Vac input voltage. Temperature range of -13 F to 158 F. Din rail mount Push-In Connection. (5.12"H x 1.65"W x 6"D).
Condition: New
Usually ships within 7-14 days. Call for ship time.$350.58
Sale Price
$292.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2903145 A primary-switched TRIO POWER power supply is available that can be mounted on a DIN rail via a push-in connection and features an input from a single-phase source while providing a consistent 24V DC output with a maximum current capacity of 10A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
240 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
10 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Electrically robust, thanks to high electric strength
Increase system availability, thanks to dynamic boost with 150 % of the nominal current for 5 seconds
Maximum flexibility due to the wide temperature range from -25°C to +70°C and device startup at -40°C
Can be used on the bridge of a ship in accordance with EN 60945
Mechanically robust, thanks to high vibration and shock resistance
Save time and costs, thanks to the Push-in connection and narrow design
Downloads
Phoenix 2903145 CAD data International.dxfPhoenix 2903145 CAD data International.pdfPhoenix 2903145 CAD data International.stpPhoenix 2903145 Data Sheet English.pdfPhoenix 2903145 Manufacturers declaration English.pdfPhoenix 2903145 Manufacturers declaration International-2.pdfPhoenix 2903145 Manufacturers declaration International.pdfPhoenix 2903145 Package Slip International.pdfPhoenix 2903145 Tender Text English.zipPhoenix 2903145 Various English.pdfPhoenix 2903145 Various English.wmv
