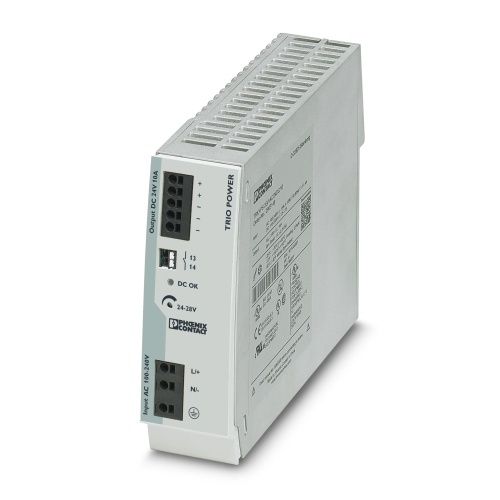

Phoenix Contact 2903149 Power supply TRIO-PS-2G/1AC/24DC/10
Normally In Stock
Code: 36890
TRIO-PS-2G/1AC/24DC/10 Phoenix Contact TRIO-PS-2G/1AC/24DC/10. 24 VDC output 10 Amp Power Supply and 85 Vac-264 Vac input voltage. Temperature range of -13 F to 158 F. Din rail mount Push-In Connection. (5.12"H x 1.65"W x 6"D).
Condition: New
Usually ships Same Day or Next Day$257.36
Sale Price
$214.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2903149 A primary-switched Trio Power power supply is available for DIN rail mounting via a push-in connection and features an input compatible with single-phase power and produces an output of 24V DC at 10A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
240 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
10 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Rugged design
Increase system availability, thanks to dynamic boost with 150 % of the nominal current for 5 seconds
Maximum flexibility due to the wide temperature range from -25°C to +70°C and device startup at -40°C
Save time and costs, thanks to the Push-in connection and narrow design
Downloads
Phoenix 2903149 CAD data International.dxfPhoenix 2903149 CAD data International.pdfPhoenix 2903149 CAD data International.stpPhoenix 2903149 Data Sheet English.pdfPhoenix 2903149 Manufacturers declaration English.pdfPhoenix 2903149 Manufacturers declaration International-2.pdfPhoenix 2903149 Manufacturers declaration International-3.pdfPhoenix 2903149 Manufacturers declaration International.pdfPhoenix 2903149 Package Slip International.pdfPhoenix 2903149 Tender Text English.zipPhoenix 2903149 Various English.pdfPhoenix 2903149 Various English.wmv
