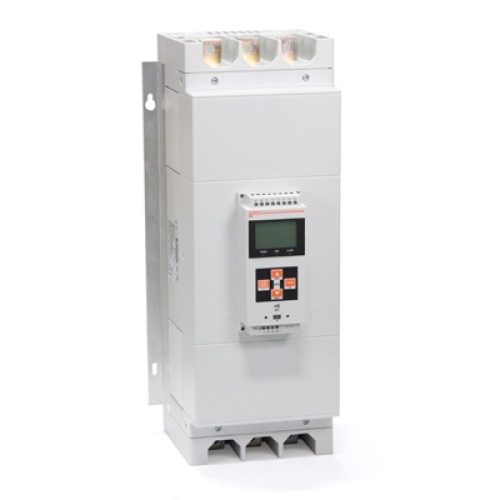

NAE SS-ADXL0320600UL Soft Starter Panel - 250 HP, 600 VAC
Normally In Stock
Code: 359743
NAE SS-ADXL0320600UL - 320 Amp Rated Starter Current, Lovato Soft Start with bypass relay, 250hp, Size 4, Operating Temp -20 C through 60° C, Operating Volt. 208-600VAC, Control Volt. 100-240VAC, Screw Terminals
Condition: New
Usually ships Same Day or Next Day$3929.66
Sale Price
$3274.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE SS-ADXL0320600UL - Two phase control; Integrated Bypass; Backlit icon LCD; App for smartphone and tablet; Status LEDs (power, ramp/run, fault); Front-mounted keypad with 4 keys, for full parameter setting; AUTOSET wizard for quick configuration in 4 steps of typical applications (pumps, fire fighting pumps, belt conveyors, mixers, fan, general purpose); Input voltage: 208...600VAC ±10%; Network frequency: 50/60 Hz ±10% self-configurable; 100...240VAC auxiliary power supply; Signalling LED: power supply within limits, signalling of startup or bypass phase, alarm; Three programmable outputs 1 changeover contact, 2 normally open contacts; Two programmable digital inputs; One programmable digital input, that can also be used as a PTC input.
Specifications
Starter Coil Voltage
600 VAC
Starter Amperage
320 Amp
Manufacturer
NAE
Component
Soft Starter Chassis
Starter Horsepower
250 HP
Features
Two phase control
Integrated Bypass
Backlit icon LCD
App for smartphone and tablet
Status LEDs (power, ramp/run, fault)
Front-mounted keypad with 4 keys, for full parameter setting
AUTOSET wizard for quick configuration in 4 steps of typical applications (pumps, fire fighting pumps, belt conveyors, mixers, fan, general purpose)
Input voltage: 208...600VAC ±10%
Network frequency: 50/60 Hz ±10% self-configurable
100...240VAC auxiliary power supply
Signalling LED: power supply within limits, signalling of startup or bypass phase, alarm
Three programmable outputs 1 changeover contact, 2 normally open contacts
Two programmable digital inputs
One programmable digital input, that can also be used as a PTC input.
