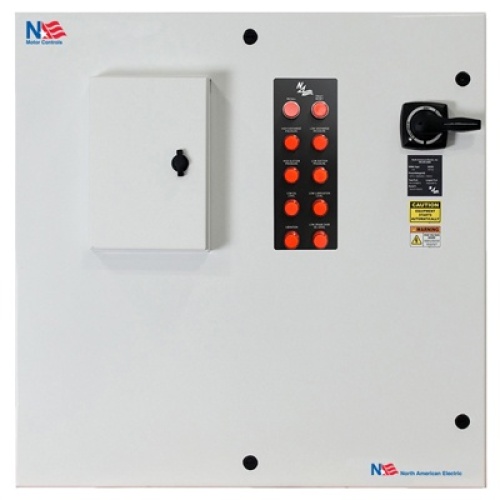

NAE 3120B-0403RP00-27S-4-000 Soft Starter - 40 HP, 480 VAC
Normally In Stock
Code: 359581
NAE 3120B-0403RP00-27S-4-000 - 40 HP, 480V, Soft Starter Panel, Ultra Heavy Duty, 50 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 36'' H, 36'' W, 16'' D, SAF Chassis Model # MS6-50
Condition: New
Usually ships Same Day or Next Day$9351.94
Sale Price
$7793.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 3120B-0403RP00-27S-4-000 - Advanced Package includes: Door Mounted Keypad with Protective Cover, HOA Switch, Soft Start/Off/ATL Bypass Switch with Full Start-Rated Contactor, Murphy Switch Interface, NEMA 3R Heavy Duty; Combination Circuit Breaker Disconnect; SAF MS6 Series Device; User Friendly / Easy Setup; Heavy Duty - 500% Overload for 30 seconds - 115% Continuous; 120VAC Control Inputs for: Start, Stop, Jog, Reset, Enable; Integral Start Duty Bypass; Soft Stop Capable; Instantaneous Over-Current Trip; Single Phase Protection; LCD Digital Display: - Start/Stop - Local / Remote - Rest; Full Start Rated Contactor; Service Entry Rated; Fully Gasketed; Door mounted Keypad w/Protective cover; Padlockable Door and Disconnect; UL 508A Certified
Specifications
Starter Coil Voltage
480 VAC
Starter Amperage
50 Amp
Component
Soft Starter
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter NEMA Size
NEMA 3R
Starter Horsepower
40 HP
Features
NEMA 3R Heavy Duty
Combination Circuit Breaker Disconnect
SAF MS6 Series Device
User Friendly / Easy Setup
Heavy Duty - 500% Overload for 30 seconds - 115% Continuous
120VAC Control Inputs for: Start, Stop, Jog, Reset, Enable
Integral Start Duty Bypass
Soft Stop Capable
Instantaneous Over-Current Trip
Single Phase Protection
LCD Digital Display: - Start/Stop - Local / Remote - Rest
Full Start Rated Contactor
Service Entry Rated
Fully Gasketed
Door mounted Keypad w/Protective cover
Padlockable Door and Disconnect
UL 508A Certified
