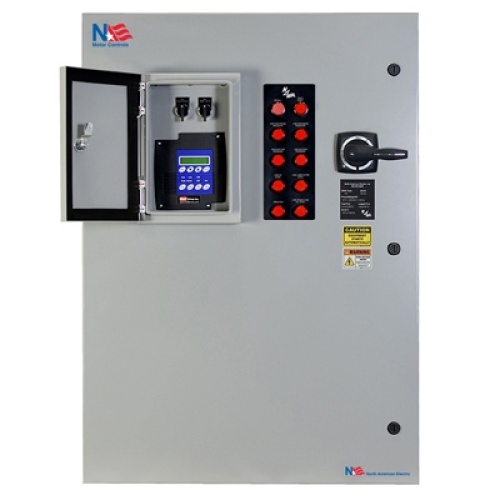

NAE 3120B-0204TP00-27S-4-000 Soft Starter - 20 HP, 480 VAC
Normally In Stock
Code: 359571
NAE 3120B-0204TP00-27S-4-000 - 20 HP, 480V, Soft Starter Panel, Ultra Heavy Duty, 30 Amps, NEMA 4/12 Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 36'' H, 36'' W, 16'' D, SAF Chassis Model # MS6-30
Condition: New
Usually ships Same Day or Next Day$8902.68
Sale Price
$7418.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 3120B-0204TP00-27S-4-000 - Advanced Package includes: Door Mounted Keypad with Protective Cover, HOA Switch, Soft Start/Off/ATL Bypass Switch with Full Start-Rated Contactor, Murphy Switch Interface, NEMA 4/12 - Heavy Duty Door mounted Keypad w/Protective cover; Combination Circuit Breaker Disconnect; SAF MS6 Series Device; User Friendly / Easy Setup; Heavy Duty - 500% Overload for 30 seconds - 115% Continuous; 120VAC Control Inputs for: Start, Stop, Jog, Reset, Enable; Integral Start Duty Bypass; Soft Stop Capable; Instantaneous Over-Current Trip; Single Phase Protection; LCD Digital Display: - Start/Stop - Local / Remote - Rest; Full Start Rated Contactor; Service Entry Rated; Padlockable Door and Disconnect; UL 508A Certified
Specifications
Starter Coil Voltage
480 VAC
Starter Amperage
30 Amp
Component
Soft Starter
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter NEMA Size
NEMA 4
Starter NEMA Size
NEMA 12
Starter Horsepower
20 HP
Features
NEMA 4/12 - Heavy Duty Door mounted Keypad w/Protective cover
Combination Circuit Breaker Disconnect
SAF MS6 Series Device
User Friendly / Easy Setup
Heavy Duty - 500% Overload for 30 seconds - 115% Continuous
120VAC Control Inputs for: Start, Stop, Jog, Reset, Enable
Integral Start Duty Bypass
Soft Stop Capable
Instantaneous Over-Current Trip
Single Phase Protection
LCD Digital Display: - Start/Stop - Local / Remote - Rest
Full Start Rated Contactor
Service Entry Rated
Padlockable Door and Disconnect
UL 508A Certified
