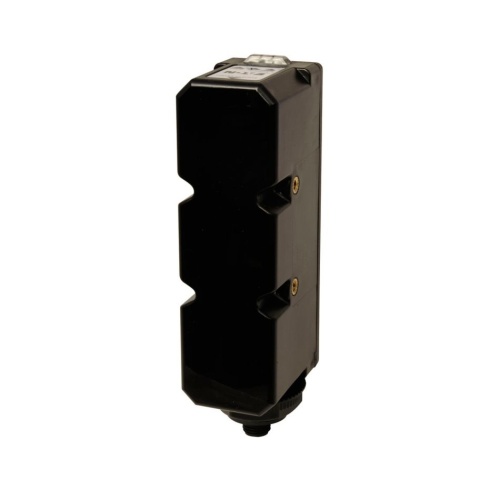

Eaton E67-LRDP200-KLD Long Range Photoelectric Sensor
Normally In Stock
Code: 358880
Eaton E67-LRDP200-KLD - E67 Series, 0 - 79 Inches Sensing Range - 100 mA at 30 VDC - Back cover: Cycoloy PC/ABS,Enclosure: Lexan PC - Power on: green,Output on: red
Condition: New
Usually ships Same Day or Next Day$1043.72
Sale Price
$869.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E67-LRDP200-KLD - E67, Back Ground Suppression, Right Angle, Light, Output ON (red), power applied to sensor (green), Dual key micro, 75 mA AC/DC at 20-132 Vac/dc, 4 pin, 20-132 Vac, 20-132 Vdc
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Size
M12
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
Component
Photoelectric Sensor
(Instrument-Sensor) NEMA Protection
NEMA 2
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) Connection Type
4 Pin
(Instrument-Sensor) Type
Background Suppression
(Instrument-Sensor) Contact Rating
100 Ma At 30 VDC
(Instrument-Sensor) Temperature Range
-31 °F - 131 °F
(Instrument-Sensor) Span
0 - 79 In
(Instrument-Sensor) Supply Voltage
18-30 VDC
Features
Sensors offer fixed, preset ranges with no user adjustment to prevent tampering and eliminate downtime
PerfectProx technology provides exceptional background rejection to solve intense application challenges
Dual indicators communicate output and power status from an easy-to-see location at the top of the sensor housing
Fully sealed package provides outstanding performance in difficult application environments
