Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 358255

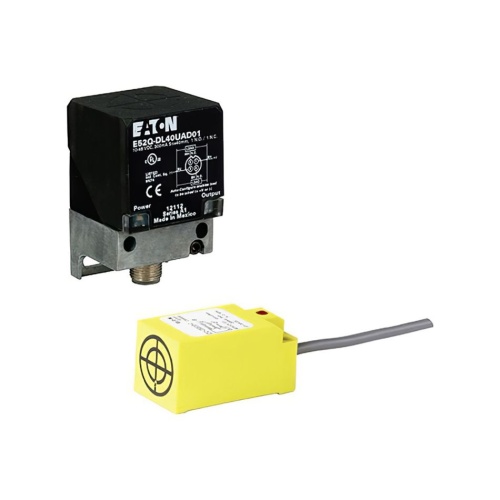

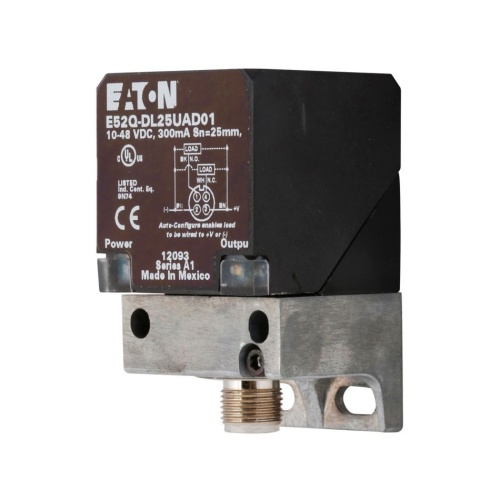

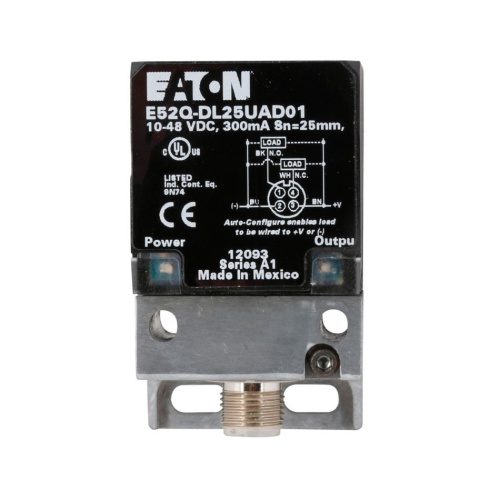

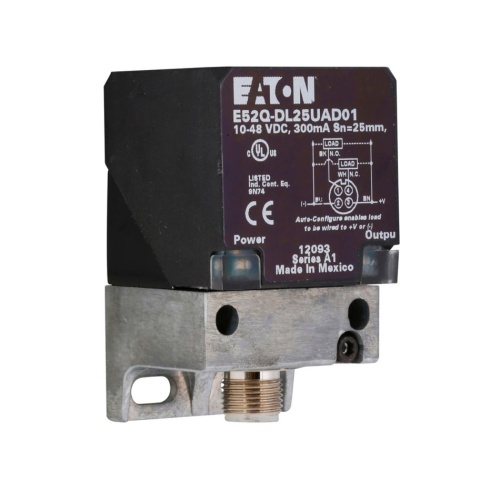

Eaton E52Q-DL25UAD01 Inductive Proximity Sensor
Normally In Stock
Eaton E52Q-DL25UAD01 - E52 Series, 0 - 25 mm Sensing Range - 300 mA at 48 VDC - Zinc alloy housing,PC,PPS - Power: green,Output: status: red
Condition: New
Usually ships Same Day or Next Day$245.34
Sale Price
$204.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E52Q-DL25UAD01 - Inductive Proximity Cube Sensor, E52, 25 mm range, Unshielded, Power (green), output status (red), M12, 300 mA, 4 pin, <3%, Complementary NPN/PNP auto-configure, 10-48 Vdc
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) IP Protection
IP68
(Instrument-Sensor) Type of Operator
NPN
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) Size
M12
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6P
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Connection Type
4 Pin
(Instrument-Sensor) Span
0 - 25 mm
(Instrument-Sensor) Supply Voltage
10-48 VDC
(Instrument-Sensor) Contact Rating
300 Ma At 48 VDC
(Instrument-Sensor) Type
Inductive Proximity Cube Sensor
(Instrument-Sensor) Temperature Range
-25 °F - 158 °F
Features
Small, low-profile design for use in space restrictive applications
Three-wire DC operation
Choose from a variety of sizes, and side or end sensing configurations
Output indicator included on all models
Epoxy filled cavities stop fluids from contacting any electrical component
Convenient mounting holes integrated into each sensor housing
