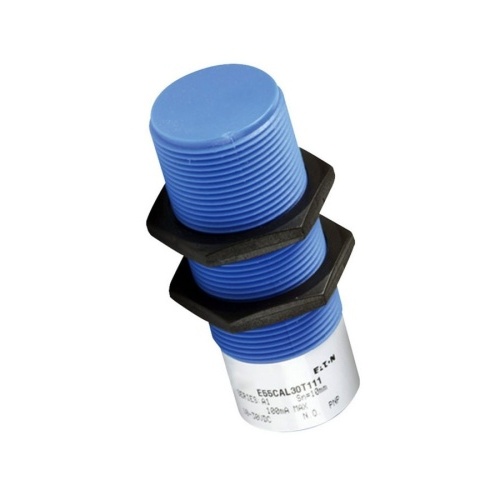

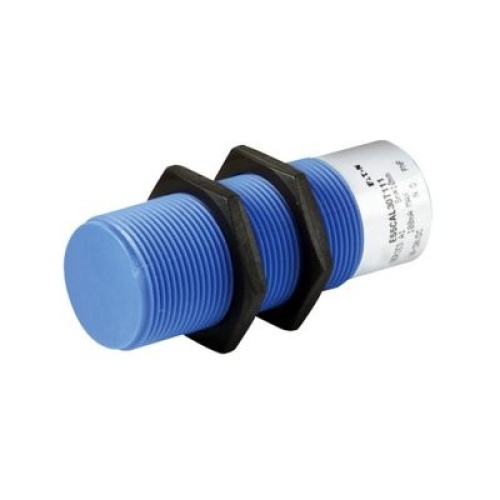

Eaton E55CAL30T111E Inductive Proximity Sensor
Normally In Stock
Code: 357907
Eaton E55CAL30T111E - E55 Series, 0 - 15 mm Sensing Range - 1 NO - 200 mA at 30 VDC - Polybutylene teraphtalate (PPBT) - Output status
Condition: New
Usually ships Same Day or Next Day$378.06
Sale Price
$315.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E55CAL30T111E - E55 Tubular Plastic Body Inductive Proximity Sensor Enclosure, dist15 mm, PNP Open Collector, NO, 200 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, <1% accuracy, Reverse polarity and short circuit protected, Un-shielded, 6.6 Ft. (2m)
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP66
(Instrument-Sensor) Contact Configuration
1 NO
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) Size
M30
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Span
0 - 15 mm
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Cable Length
6.6 Ft
(Instrument-Sensor) Contact Rating
200 Ma At 30 VDC
Features
Models available that operate on two-wire AC or three-wire DC power
Threaded tubular housings in three diameters allow easy integration into new and existing applications
Nonmetallic construction offers excellent resistance to corrosion
Output indicator LED is standard on all models
