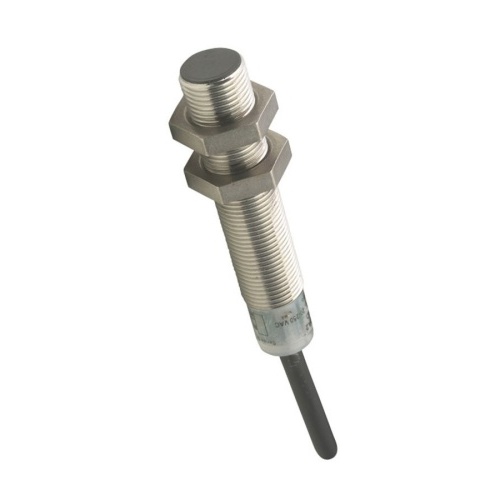

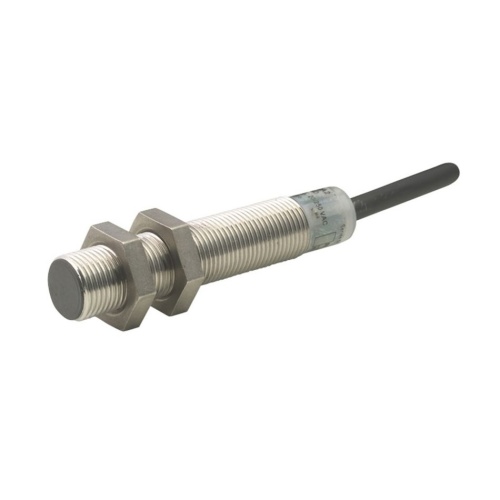

Eaton E57LAL12T110EDY1 Inductive Proximity Sensor
Normally In Stock
Code: 357878
Eaton E57LAL12T110EDY1 - E57 Series, 0 - 4 mm Sensing Range - 1 NO - 500 mA at 30 VDC
Condition: New
Usually ships Same Day or Next Day$331.20
Sale Price
$276.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E57LAL12T110EDY1 - 0.47 dia, dist. 4 mm, NO NPN Open Collector, 500 mA at 6-30Vdc, 4 Pin M12 Connector, 6–48 Vdc input, Short circuit protected, Un-shielded, 6.6 ft (2m)
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Contact Configuration
1 NO
(Instrument-Sensor) Type of Operator
NPN
(Instrument-Sensor) Size
M12
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) Span
0 - 4 mm
(Instrument-Sensor) NEMA Protection
NEMA 6P
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Connection Type
4 Pin
(Instrument-Sensor) Cable Length
6.6 Ft
(Instrument-Sensor) Supply Voltage
6-48 VDC
(Instrument-Sensor) Contact Rating
500 Ma At 30 VDC
Features
Stainless steel body
Operating voltage 10 – 30 Vdc
Short-circuit protection
Laser-engraved label
360-degree LED indicator
