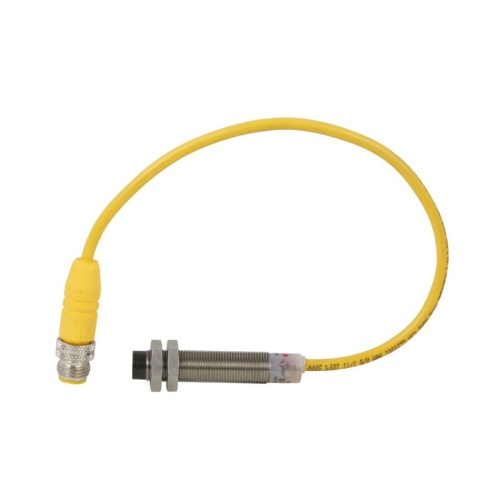

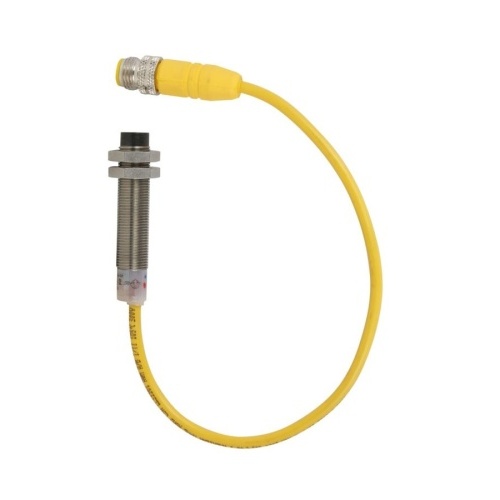

Eaton E57LBL12T111E3 Inductive Proximity Sensor
Normally In Stock
Code: 357868
Eaton E57LBL12T111E3 - E57 Series, 0 - 4 mm Sensing Range - 1 NC - 500 mA at 30 VDC - Stainless steel - Output status: red
Condition: New
Usually ships Same Day or Next Day$260.84
Sale Price
$217.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E57LBL12T111E3 - E57 Premium+ Series Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, dist. 4 mm, NC PNP Open Collector, 500 mA at 6-30Vdc, 10 Ft. (3m) Cable, 6–48 Vdc input, <3% accuracy, Short circuit protected, Un-shielded, 10 Ft. (3m)
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) Size
M12
(Instrument-Sensor) Contact Configuration
1 NC
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) Span
0 - 4 mm
(Instrument-Sensor) NEMA Protection
NEMA 6P
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Cable Length
10 Ft
(Instrument-Sensor) Supply Voltage
6-48 VDC
(Instrument-Sensor) Contact Rating
500 Ma At 30 VDC
Features
Stainless steel body
Operating voltage 10 – 30 Vdc
Short-circuit protection
Laser-engraved label
360-degree LED indicator
