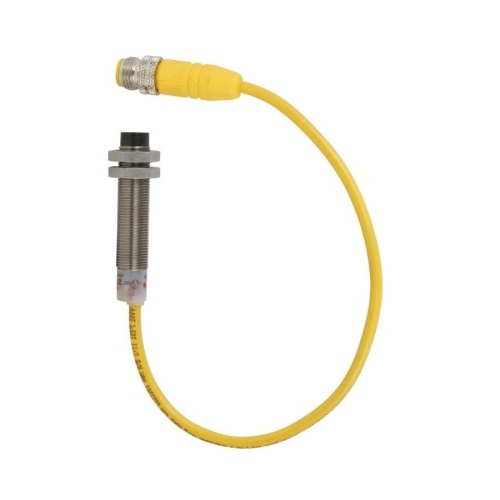

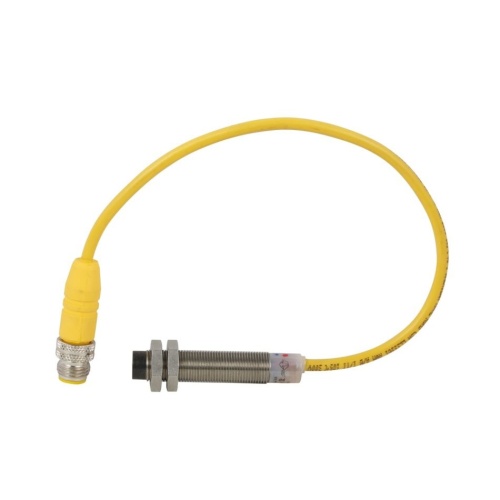

Eaton E57LBL12T110SP Inductive Proximity Sensor
Normally In Stock
Code: 357867
Eaton E57LBL12T110SP - E57 Series, 0 - 2 mm Sensing Range - 1 NC - 500 mA at 30 VDC - Stainless steel - Output status: red
Condition: New
Usually ships Same Day or Next Day$307.16
Sale Price
$255.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E57LBL12T110SP - 0.47 dia, dist. 2 mm, NC NPN Open Collector, 500 mA at 6-30Vdc, 4 Pin M12 Pigtail Connector, 6–48 Vdc input, <1% accuracy, Short circuit protected, Shielded
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Type of Operator
NPN
(Instrument-Sensor) Contact Configuration
1 NC
(Instrument-Sensor) Span
0 - 2 mm
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 6P
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Temperature Range
-13 °F - 158 °F
(Instrument-Sensor) Connection Type
4 Pin
(Instrument-Sensor) Supply Voltage
6-48 VDC
(Instrument-Sensor) Contact Rating
500 Ma At 30 VDC
(Instrument-Sensor) Size
M12 Pigtail
Features
Stainless steel body
Operating voltage 10 – 30 Vdc
Short-circuit protection
Laser-engraved label
360-degree LED indicator
