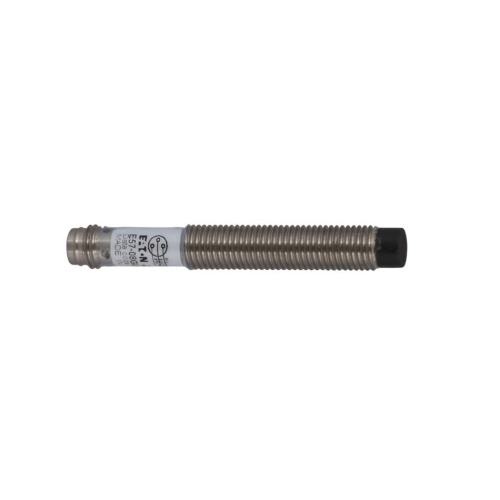

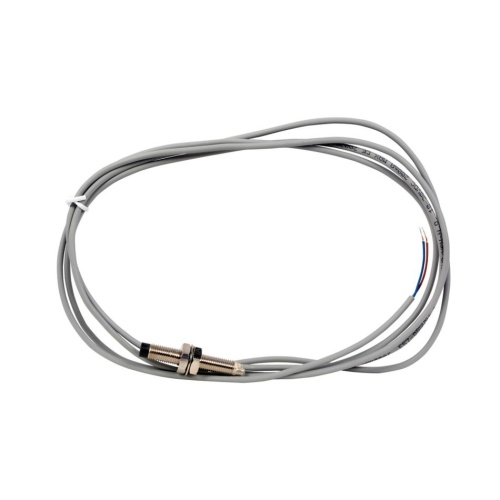

Eaton E57-08GU02-GNB Inductive Proximity Sensor
Normally In Stock
Code: 357683
Eaton E57-08GU02-GNB - E57 Series, 0 - 2 mm Sensing Range - 1 NO - 100 mA at 30 VDC - Stainless steel - Output status: red
Condition: New
Usually ships Same Day or Next Day$111.67
Sale Price
$93.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E57-08GU02-GNB - E57 Small dia Series Inductive Proximity Sensor, 0.315 dia, Straight, Sensor dist: 2 mmdist, 100 mA max DC, PNP Open Collector, NO, 100 mA at 30 Vdc, 3 Pin M8 Connector, 10-30 Vdc input, < 1% accuracy, Short circuit protected, Un-shielded
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Contact Configuration
1 NO
(Instrument-Sensor) Type of Operator
PNP
(Instrument-Sensor) Span
0 - 2 mm
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) Size
M8
Manufacturer
Eaton
(Instrument-Sensor) Supply Voltage
10-30 VDC
(Instrument-Sensor) Connection Type
3 Pin
(Instrument-Sensor) Contact Rating
100 Ma At 30 VDC
(Instrument-Sensor) Type
Small Diameter Sensor
(Instrument-Sensor) Temperature Range
32 °F - 140 °F
Features
Stainless steel body
Operating voltage 10 – 30 Vdc
Short-circuit protection
Laser-engraved label
360-degree LED indicato
