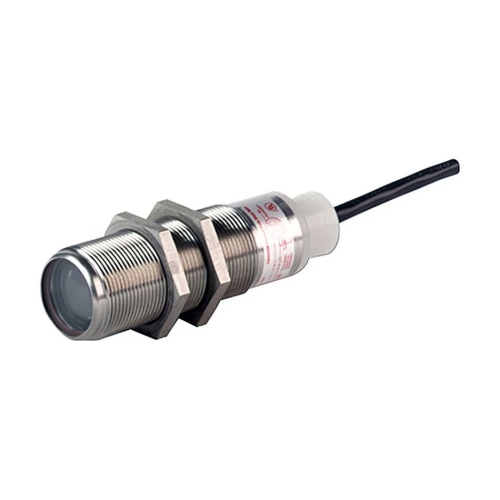

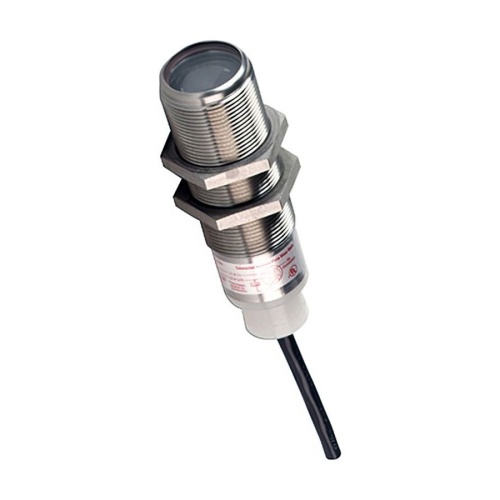

Eaton E58-30DP150-ELPB Harsh Duty Photoelectric Sensor
Normally In Stock
Code: 357504
Eaton E58-30DP150-ELPB - E58 Series, 0 - 6 Inches Sensing Range - 300 mA at 132 VAC/30 VDC - Stainless steel - Output status: red *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$744.35
Sale Price
$620.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E58-30DP150-ELPB - E58 Tubular 30mm Photoelectric Sensor, 1.18 dia, dist. 6 In., 2 Wire, 300 mA at 90-132Vac/18-50Vdc, 3 Pin Mini Pigtail Connector, 90-132Vac/18-50Vdc input, Auto reset short circuit
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Size
M30
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 3R
(Instrument-Sensor) NEMA Protection
NEMA 6P
Component
Photoelectric Sensor
(Instrument-Sensor) NEMA Protection
NEMA 2
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Connection Type
2 Wire
(Instrument-Sensor) Contact Rating
300 Ma At 132 VAC
(Instrument-Sensor) Contact Rating
300 Ma At 50 VDC
(Instrument-Sensor) Supply Voltage
90-132 VAC
(Instrument-Sensor) Supply Voltage
18-50 VDC
(Instrument-Sensor) Temperature Range
-13 °F - 131 °F
(Instrument-Sensor) Connection Type
3 Pin Mini Pigtail Connector
(Instrument-Sensor) Span
0 - 6 In
Features
Ideal for automotive applications where exposure to lubricants, cutting fluids, coolants and glycols is common.
A smooth-body version is a great choice for food-processing applications to withstand high-pressure chemical washdowns, sanitizers, surfactants and cleansing agents.
Highly refined optics provide long sensing ranges through high levels of contamination.
PerfectProx technology allows for excellent background rejection and high excess gain.
Visible sensing beams enable easy setup.
The output status indicator is the brightest available from any sensor manufacturer, providing visibility from any angle in any lighting condition.
The industry's only background rejection sensors with a 2-wire circuit design.
