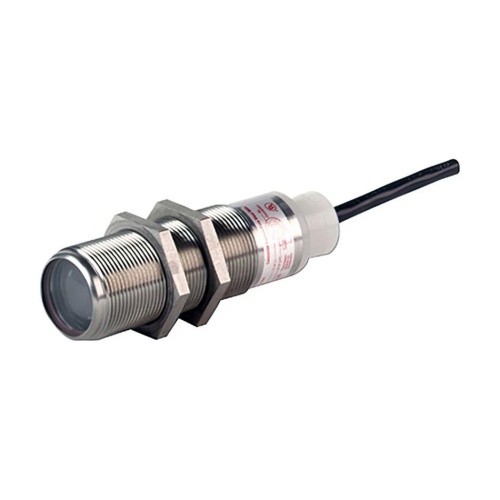

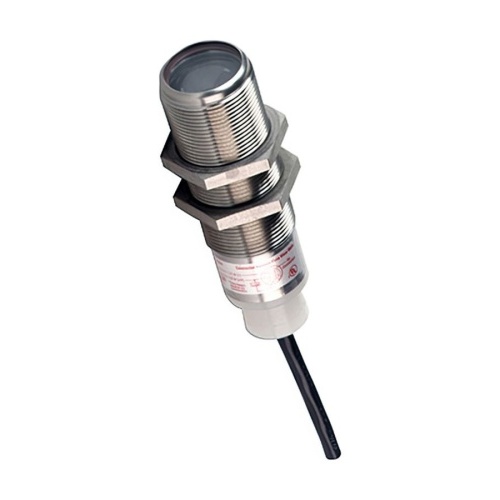

Eaton E58-30DPS280-GLP Harsh Duty Photoelectric Sensor
Normally In Stock
Code: 357498
Eaton E58-30DPS280-GLP - E58 Series, 0 - 11 Inches Sensing Range - 300 mA at 132 VAC/30 VDC - Stainless steel - Output status: red
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$867.53
Sale Price
$722.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E58-30DPS280-GLP - E58 Tubular 30mm Photoelectric Sensor, 1.18 dia, dist. 11 In, AC: L1 Switched, 300 mA DC NPN/AC 3-Wire, 4 Pin Pigtail Dual Key Micro, 20-132 Vac 50/60 Hz or 15-30 Vdc input, Background Suppression
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) Type of Operator
NPN
(Instrument-Sensor) Size
M30
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 1
(Instrument-Sensor) NEMA Protection
NEMA 3R
(Instrument-Sensor) NEMA Protection
NEMA 6P
Component
Photoelectric Sensor
(Instrument-Sensor) NEMA Protection
NEMA 2
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) NEMA Protection
NEMA 3
(Instrument-Sensor) NEMA Protection
NEMA 3S
(Instrument-Sensor) Contact Rating
300 Ma At 30 VDC
(Instrument-Sensor) Contact Rating
300 Ma At 132 VAC
(Instrument-Sensor) Temperature Range
-40 °F - 131 °F
(Instrument-Sensor) Supply Voltage
20-132 VAC
(Instrument-Sensor) Supply Voltage
15-30 VDC
(Instrument-Sensor) Span
0 - 11 In
(Instrument-Sensor) Connection Type
3 Wire
(Instrument-Sensor) Connection Type
4 Pin Pigtail Dual Key Micro Connector
Features
Ideal for automotive applications where exposure to lubricants, cutting fluids, coolants and glycols is common.
A smooth-body version is a great choice for food-processing applications to withstand high-pressure chemical washdowns, sanitizers, surfactants and cleansing agents.
Highly refined optics provide long sensing ranges through high levels of contamination.
PerfectProx technology allows for excellent background rejection and high excess gain.
Visible sensing beams enable easy setup.
The output status indicator is the brightest available from any sensor manufacturer, providing visibility from any angle in any lighting condition.
The industry's only background rejection sensors with a 2-wire circuit design.
