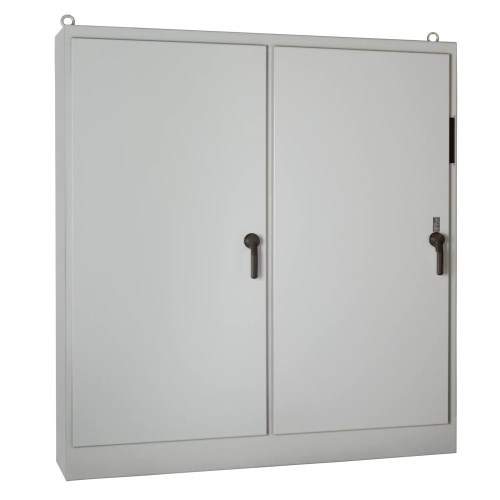

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
nVent Hoffman A72XM3418FTCLP Steel Disconnect Enclosure
Normally In Stock
Code: 3309
nVent Hoffman A72XM3418FTCLP Disconnect Enclosure Steel Premium Grade(White Interior) 72.12 x 34.25 x 18.12 inch (HxWxD) Steel Type 12 Disconnect Freestanding(Floor Mount) 1 door Enclosure(With Backplate) with continuous hinge and 3-point latch with padlocking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4630.98
Sale Price
$3859.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A72XM3418FTCLP Steel Disconnect Enclosure Available in one- to four-door wall-mount and one- to five-door free-stand models, the larger wall-mount sizes accommodate more components and are ideal for applications with limited floor space. Free-stand enclosures are 48- and 60-in. high to provide a clear line of site above the enclosure.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Depth
18"
Enclosure Latch Type
3 Point
Enclosure Height
72"
Enclosure Width
34"
Component
Disconnect Enclosure
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Composition
Steel
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Cutout Type
Universal Cutout
Manufacturer
Hoffman
Features
Removable centerposts permit easy panel installation
Body flange trough excludes liquids and contaminants
Heavy-duty lifting eyes anchor into reinforced top
Concealed, easy-to-remove hinges
Body stiffeners in larger enclosures for extra rigidity
Seams continuously welded and ground smooth
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Master door is far right-hand door on all enclosures
Oil-resistant gasket
Data pocket is high-impact thermoplastic
Panel supports
Defeater on primary door requires a screwdriver to open
Mechanical interlock activated by master door prevents slave doors from being opened first, doors can be closed in any order
Models available with panel included or panel sold separately
FTC models include removable painted 10 gauge steel panels which mount on collar studs
Includes door hardware
Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
Downloads
Hoffman A72XM3418FTCLP 2D DXF CAD.zipHoffman A72XM3418FTCLP 3D STEP CAD.zipHoffman A72XM3418FTCLP CAD Drawing.zipHoffman A72XM3418FTCLP CSA Certification.pdfHoffman A72XM3418FTCLP Declaration of Compliance.pdfHoffman A72XM3418FTCLP EU Certification.pdfHoffman A72XM3418FTCLP Large Enclosure Handling Instructions CODE.pdfHoffman A72XM3418FTCLP Large Enclosure Handling Manual.pdfHoffman A72XM3418FTCLP Repainting Instructions.pdfHoffman A72XM3418FTCLP Spec Sheet.pdfHoffman A72XM3418FTCLP UL Certification.pdfHoffman A72XM3418FTCLP User Manual.pdf
