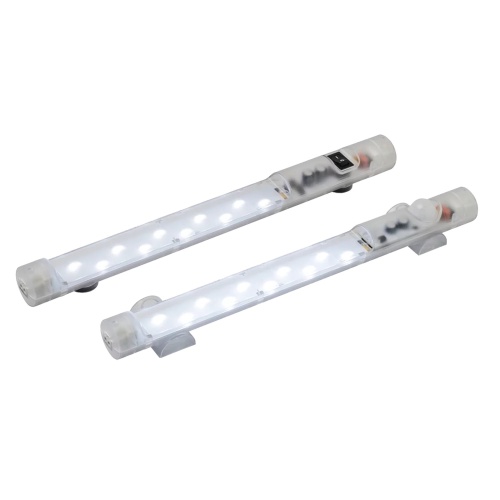

nVent Hoffman LEDA1S35 LED Screw-On Light 120/240V W/Switch
Code: 11054
nVent Hoffman LEDA1S35 LED Screw-On Light 120/240V W/Switch
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
Replacement Products
Description
nVent Hoffman LEDA1S35 LED Screw-On Light 120/240V W/Switch
Specifications
Features
Input and output connectors are included (16 AWG)
Power consumption for all models is 5 watts
The power output allows up to 10 lights to be connected to each other (daisy chain)
Operating temperature -22 F to 140 F (-30 C to 60 C)
6000-7000K color temperature
400 lumen at 120-degree angle of illumination
Life expectancy of 60,000 hours at 68 F (20 C) under specifications
Protection Class II (double insulated)
Downloads
Hoffman LEDA1S35 2D DXF CAD.zipHoffman LEDA1S35 3D STEP CAD.zipHoffman LEDA1S35 CAD Drawing.zipHoffman LEDA1S35 Declaration of Compliance.pdfHoffman LEDA1S35 Dimension Drawing.gifHoffman LEDA1S35 EU Certification.pdfHoffman LEDA1S35 Instruction Manual.pdfHoffman LEDA1S35 Spec Sheet.pdfHoffman LEDA1S35 UL Certification.pdfHoffman LEDA1S35 User Manual.pdf
