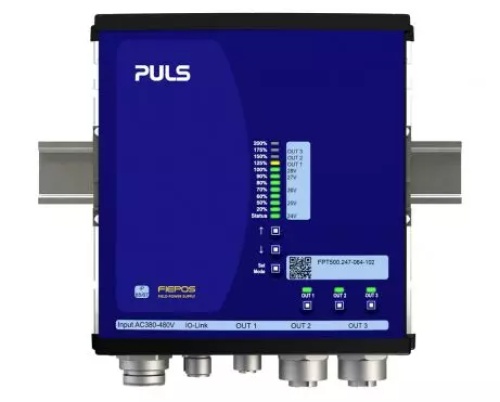

PULS FPT500-247-064-102 FIEPOS IP54-67 Power Supply - 24 VDC, 25 Amp
Normally In Stock
Code: 323903
PULS FPT500-247-064-102 - 3-phase IP54-67 power supply 24V, 25A IO-Link | Input: 7/8”d | Output: 1x M12-A; 2x 7/8” - 5pin - 7.13 x 7.20 x 2.32 (WxHxD)
Condition: New
Usually ships Same Day or Next Day$1905.12
Sale Price
$1587.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
PULS FPT500-247-064-102 - Introducing FIEPOS - PULS' innovative FIEld POwer Supply designed for flexible, modular systems in machine and system engineering. FIEPOS is a decentralized power supply available in IP54, IP65, or IP67 protection classes, offering easy installation and meeting diverse requirements of modular factory automation. Enjoy cost, time, and space savings as FIEPOS eliminates the need for centralized control cabinets and allows installation outside of the cabinet directly on the machine. With a user-friendly LED interface and push buttons, or remote monitoring via IO-Link, managing output voltage and current becomes effortless. The compact housing and current-limited outputs enable the use of shorter cables and smaller cross-sections, reducing copper costs and installation efforts. Moreover, FIEPOS eliminates the need for separate protection modules, saving valuable space in the system and warehouse. Embrace the future of power supply with FIEPOS, the ultimate solution for flexible and efficient industrial applications.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Watts
600 Watt
Power Supply Voltage Output
24 VDC
Power Supply Voltage Input
480 VAC
Component
Power Supply
Manufacturer
PULS
Line
FIEPOS
Power Supply Connection Type
Screw Connections
Power Supply Amperage Output Range
25 Amp
Features
IP 65/67 Degree of protection
1000 Wpeak 5 s
3 AC 380-480 V wide-range input
1 NEC Class II output
2 switchable outputs
Outputs for actors and sensors shares one channel
95.6 % full load and excellent partial load efficiencies
DIN rail mounting possible, option “D”
Output connected to PE (PELV)
Version without connection to PE on request
Large output capacitors
Not potted
Negligible low input inrush current surge
Full power up to +45 °C
IO-Link
Input: 7/8”d / Output: 1x M12-A
2x 7/8” - 5pin
