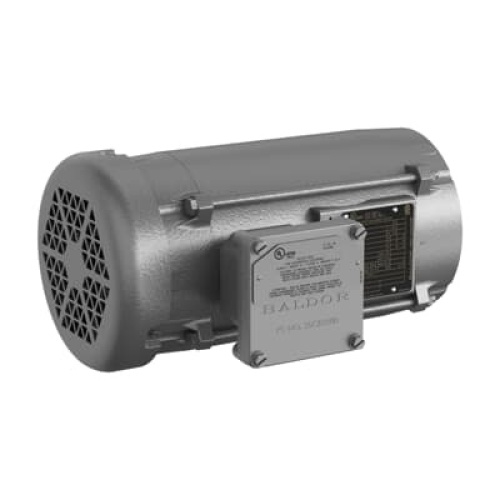

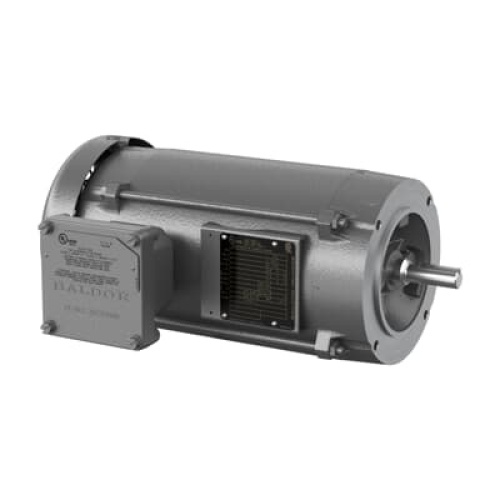

Baldor VXM050542-5 - XPFC, 3 Phase, 0.5 HP , 60 Hz
Normally In Stock
Code: 314881
Baldor VXM050542- 5 - Explosion- Proof Fan Cooled - 1800 RPM - 575 Volt - 0.7 Amp - 0.5 HP - Steel - 56C Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$1182.65
Sale Price
$985.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor VXM050542-5 - The General Purpose motors offered by Baldor-Reliance® are single phase and three phase industrial motors designed to surpass the energy efficiency standards in the United States, Canada, and Mexico. These motors boast high starting torque, overload capacity, and exceptional reliability. They come in various enclosure constructions, ranging from open designs for moderate water and dust exposure to cast iron designs for harsh environments with water, dust, and corrosive elements. The Super-E® motors offer NEMA Premium efficiency and are ready for use with inverters, featuring wide variable torque speed ranges as a standard feature. Additionally, these motors are backed by a 3-year warranty, ensuring longevity and customer satisfaction. For any special requirements beyond the listed capabilities, customers are advised to consult their sales representative.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Horsepower
0.5 HP
Motor Amperage (Full Load)
0.7 Amp
Motor Enclosure Type
Explosion-Proof Fan Cooled
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Flange and shaft designs suitable for NEMA Jet Pump and Close Coupled (JM & JP) pump mounting
Jet pump (Single-phase: ½ - 2 hp
Three-phase 1 – 2 hp), 56J frame
Close-coupled pump (3-10 hp), 143JM – 215JM frame
Drill rig pump (3-10 hp)
182JP – 215 frame
115/230, 115/208-230, 230/460, 575 volts
UL & CSA certification
Class I Group C&D
Three-phase inverter duty
Totally enclosed, robust steel and cast iron frame designs
1.15 SF, Class F insulation, 40⁰C ambient
Oversized ball bearings, locked DE
Normally closed thermostats
Threaded lead inlet
