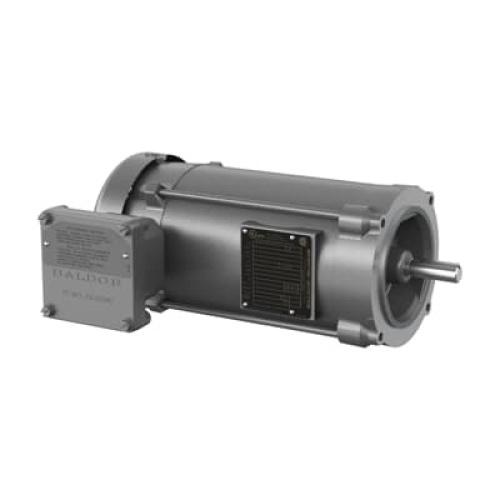

Baldor VXM050242A - XPFC, 3 Phase, 0.25 HP , 60 Hz
Normally In Stock
Code: 314878
Baldor VXM050242A - Explosion- Proof Fan Cooled - 1800 RPM - 460 Volt - 0.7 Amp - 0.25 HP - Steel - 56C Frame - Class B Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$962.98
Sale Price
$802.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VXM050242A - Baldor-Reliance® explosion-proof motors are designed and certified to operate safely in hazardous locations or potentially dangerous environments where there may be concentrations of combustible gases, vapors, or dust. These motors meet strict safety standards, including UL and CSA certifications for use in Division-based hazardous locations according to the NFPA70 National Electric Code and C22.1, the Canadian Electric Code. Key features of these motors include uncompromised safety, clearly marked UL Certification, and premium efficient electrical designs, ensuring reliable and efficient performance even in challenging and potentially hazardous conditions.
Specifications
Motor Voltage Phases
3 Phase
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Amperage (Full Load)
0.7 Amp
Motor Voltage
208 Volt
Motor Insulation Class
Class B Insulation
Motor Horsepower
0.25 HP
Motor Enclosure Type
Explosion-Proof Fan Cooled
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Flange and shaft designs suitable for NEMA Jet Pump and Close Coupled (JM & JP) pump mounting
Jet pump (Single-phase: ½ - 2 hp
Three-phase 1 – 2 hp), 56J frame
Close-coupled pump (3-10 hp), 143JM – 215JM frame
Drill rig pump (3-10 hp)
182JP – 215 frame
115/230, 115/208-230, 230/460, 575 volts
UL & CSA certification
Class I Group C&D
Three-phase inverter duty
Totally enclosed, robust steel and cast iron frame designs
1.15 SF, Class F insulation, 40⁰C ambient
Oversized ball bearings, locked DE
Normally closed thermostats
Threaded lead inlet
