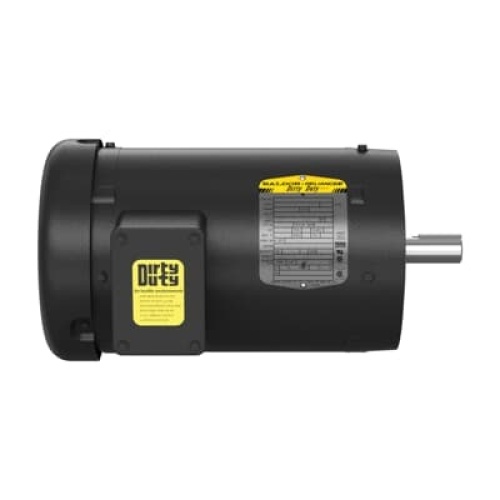

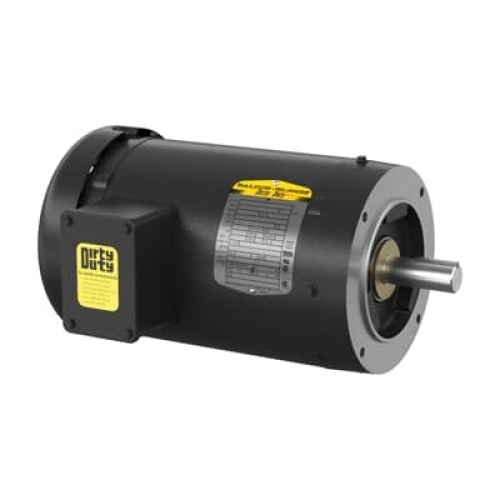

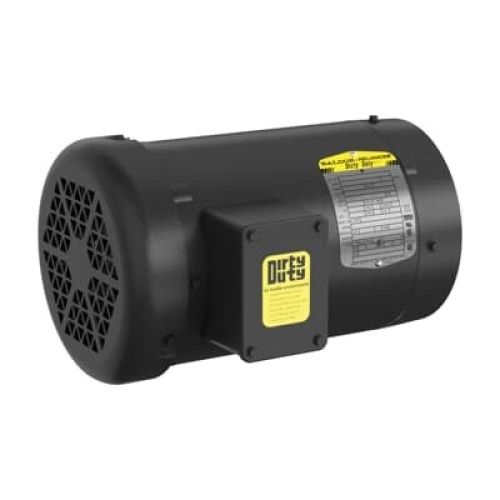

Baldor VEDM3555T - TEFC, 3 Phase, 2 HP , 60 Hz
Normally In Stock
Code: 314771
Baldor VEDM3555T - Totally Enclosed Fan Cooled - Dirty Duty Plus Motor - 3600 RPM - 460 Volt - 2.5 Amp - 2 HP - Steel - 145TC Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$1778.08
Sale Price
$1481.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VEDM3555T - Baldor-Reliance® severe duty motors are specifically engineered to withstand harsh conditions, safeguarding against contamination, moisture, vibration, and corrosion. These motors are equipped with Super-E® premium efficient electrical designs, ensuring they can handle demanding duty cycles while delivering high starting and peak torques across wide speed ranges. With heavy-duty cast iron construction and enhanced ingress protection, these motors provide a safe, reliable, and long operating life, effectively reducing energy consumption even in the most challenging applications. Additionally, their corrosion-resistant epoxy finish adds further durability to the motors, making them an ideal choice for tough environments.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
2 HP
Motor Frame Model
145TC
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Amperage (Full Load)
2.5 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Type
Dirty Duty Plus
Features
From ease of installation to safe and reliable operation, these motors are certified to be used in hazardous locations (Division 2, Class I).
Performance enhancing features that make ABB the #1 NEMA motor brand
Designed to protect against contamination, moisture, vibration and demanding duty cycles.
Heavy duty cast iron frames construction (frame, endplates, conduit box and fan cover) for durability
Regreasable bearings on all frame sizes
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
