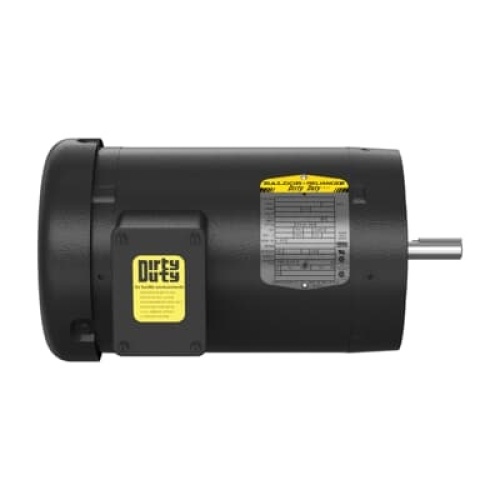

Baldor VEDM3546 1HP, 1760RPM, 3PH, 60HZ, 56C, 3520M, Totally Enclosed Fan Cooled, F1, N
Normally In Stock
Code: 222362
Baldor VEDM3546 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$1530.72
Sale Price
$1275.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VEDM3546 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ 1760 RPM,1800 RPM @ 60 HZ 1.500 A @ 460.0 V
3 A @ 230.0 V
3.100 A @ 208.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor NEMA Design
NEMA Design L
Motor Frame Model
56C
Motor Amperage (Full Load)
3 Amp
Motor Amperage (Full Load)
1.5 Amp
Motor Amperage (Full Load)
3.1 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
From ease of installation to safe and reliable operation, these motors are certified to be used in hazardous locations (Division 2, Class I).
Performance enhancing features that make ABB the #1 NEMA motor brand
Designed to protect against contamination, moisture, vibration and demanding duty cycles.
Heavy duty cast iron frames construction (frame, endplates, conduit box and fan cover) for durability
Regreasable bearings on all frame sizes
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
