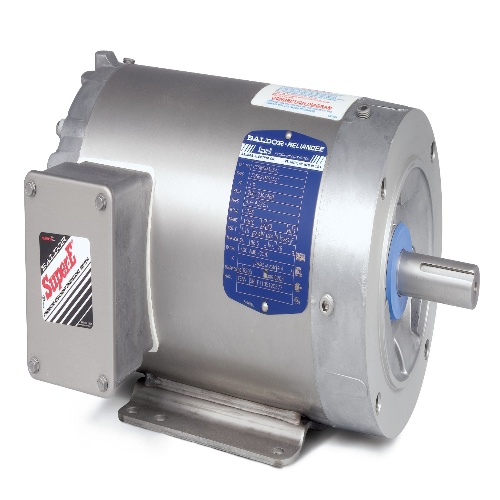

Baldor CESWDM3546-5 - TENV, 3 Phase, 1 HP , 60 Hz
Normally In Stock
Code: 313425
Baldor CESWDM3546- 5 - Totally Enclosed Non- Vented - 1800 RPM - 575 Volt - 1.2 Amp - 1 HP - Stainless Steel - 56C Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$1755.43
Sale Price
$1462.86
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor CESWDM3546-5 - Baldor-Reliance® Washdown duty motors are purpose-built to meet the rigorous demands of applications that require enhanced protection against contaminants and the ability to function in environments exposed to washdown methods. ABB offers the most extensive range of washdown motors, ranging from painted to stainless steel options, catering to the specific washdown needs of their diverse customer base. Key features of these motors include double sealed motor bearings, neoprene rubber gaskets ensuring a tight, waterproof seal, a 300 series stainless steel shaft, hardware, and nameplate, shaft seals on both ends, sealed frame to endplate joints to prevent water entry, and easily removable drain plugs enabling thorough drainage in any position. These features collectively make the Baldor-Reliance® Washdown duty motors highly reliable and suitable for the most demanding washdown applications.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1 HP
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Amperage (Full Load)
1.2 Amp
Motor Enclosure Type
Totally Enclosed Non-Vented
Manufacturer
Baldor-Reliance
Motor Construction
Stainless Steel
Features
Corrosion-resistant 300 series stainless steel frame, endplates, conduit box, shaft, base, and hardware.
Simple maintenance with four removable condensation drain plugs for complete drainage, regardless of position to extend the life of the motor.
A rotating non-contact labyrinth seal on the drive end shaft extension protects the motor bearings by rotating and expelling contaminants. Neoprene gaskets also ensures that water does not enter the motor.
By utilizing sealed bearings, relubrication and maintenance is minimized
Paint Free motors are offered in single and three phase, as well as sinewave and inverter duty.
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
