Code: 219971

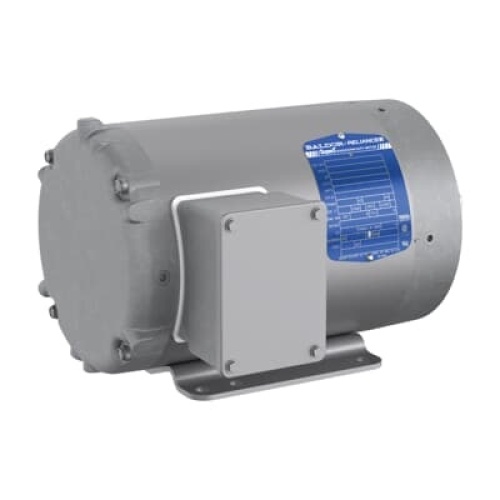

Baldor CESWDM3546T 1HP, 1760RPM, 3PH, 60HZ, 143TC, 3524M, Totally Enclosed Non-Vented, F1
Normally In Stock
Baldor CESWDM3546T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$1717.43
Sale Price
$1431.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor CESWDM3546T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ 1760 RPM,1800 RPM @ 60 HZ 1.500 A @ 460.0 V
3 A @ 230.0 V
3.100 A @ 208.0 V 60.00 Hz Stainless Steel Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1 HP
Motor Frame Model
143TC
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
3 Amp
Motor Amperage (Full Load)
1.5 Amp
Motor Amperage (Full Load)
3.1 Amp
Motor NEMA Design
NEMA Design N
Motor Enclosure Type
Totally Enclosed Non-Vented
Manufacturer
Baldor-Reliance
Motor Construction
Stainless Steel
Features
Corrosion-resistant 300 series stainless steel frame, endplates, conduit box, shaft, base, and hardware.
Simple maintenance with four removable condensation drain plugs for complete drainage, regardless of position to extend the life of the motor.
A rotating non-contact labyrinth seal on the drive end shaft extension protects the motor bearings by rotating and expelling contaminants. Neoprene gaskets also ensures that water does not enter the motor.
By utilizing sealed bearings, relubrication and maintenance is minimized
Paint Free motors are offered in single and three phase, as well as sinewave and inverter duty.
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
