Code: 313408

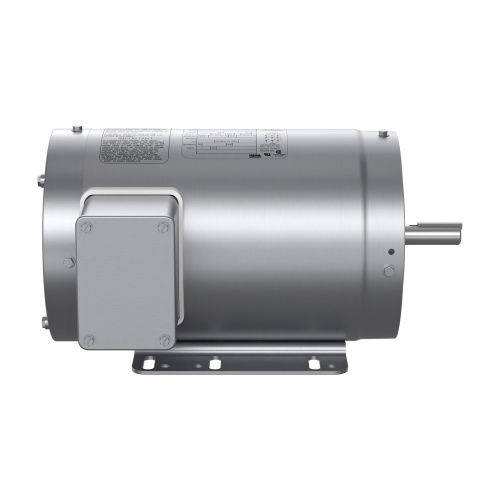

Baldor CESSWDM3545-H - TENV, 3 Phase, 1 HP , 60 Hz
Normally In Stock
Baldor CESSWDM3545- H - Totally Enclosed Non- Vented - 3600 RPM - 460 Volt - 1.3 Amp - 1 HP - Stainless Steel - 56HC Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$2153.04
Sale Price
$1794.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor CESSWDM3545-H - Baldor-Reliance® Washdown duty motors are purpose-built to meet the rigorous demands of applications that require enhanced protection against contaminants and the ability to function in environments exposed to washdown methods. ABB offers the most extensive range of washdown motors, ranging from painted to stainless steel options, catering to the specific washdown needs of their diverse customer base. Key features of these motors include double sealed motor bearings, neoprene rubber gaskets ensuring a tight, waterproof seal, a 300 series stainless steel shaft, hardware, and nameplate, shaft seals on both ends, sealed frame to endplate joints to prevent water entry, and easily removable drain plugs enabling thorough drainage in any position. These features collectively make the Baldor-Reliance® Washdown duty motors highly reliable and suitable for the most demanding washdown applications.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1 HP
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Enclosure Type
Totally Enclosed Non-Vented
Motor Amperage (Full Load)
1.3 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Stainless Steel
Motor Frame Model
56HC
Features
Corrosion-resistant 300 series stainless steel frame, endplates, conduit box, shaft, base, and hardware. The finish is polished stainless steel for easy cleaning.
Simple maintenance with four removable condensation drain plugs for complete drainage, regardless of position to extend the life of the motor.
The nameplate is laser-etched directly onto the motor band, providing quick and easy access to essential technical information
Rotating non-contact labyrinth seals on both the drive end (DE) and opposite drive end (ODE) for enhanced durability
Upgrade to stainless steel, designed for harsh food processing environments, resistant to rust and deterioration from caustic sanitizing to minimize risk of food safety violations.
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
