Code: 219969

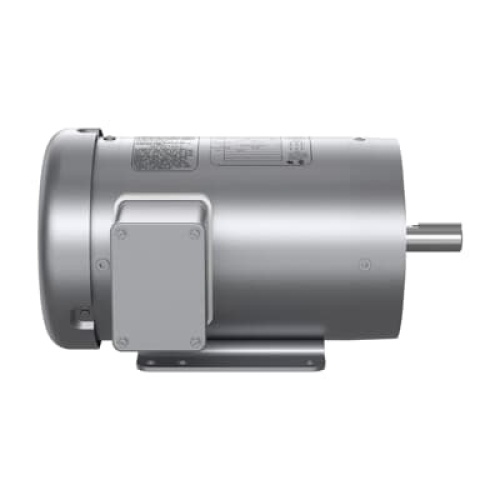

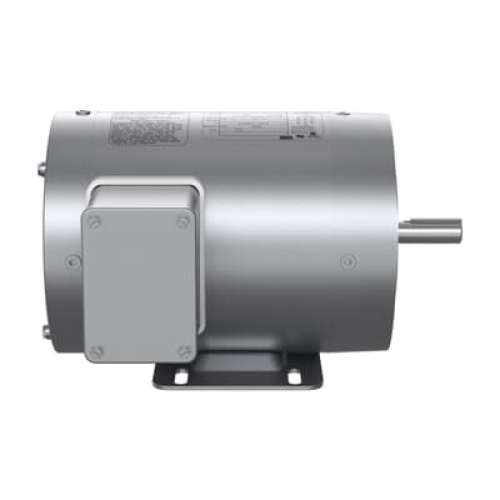

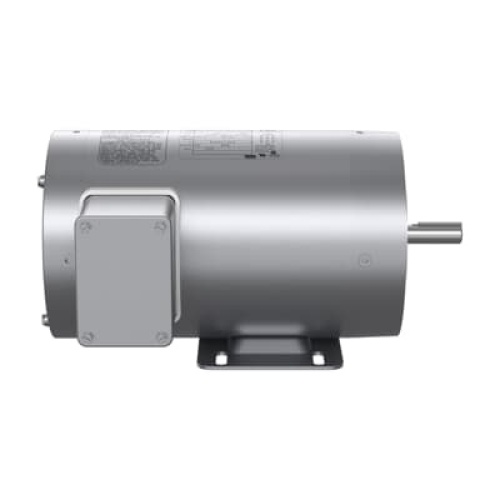

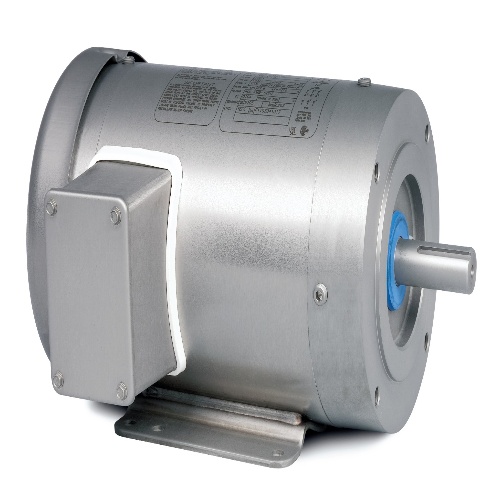

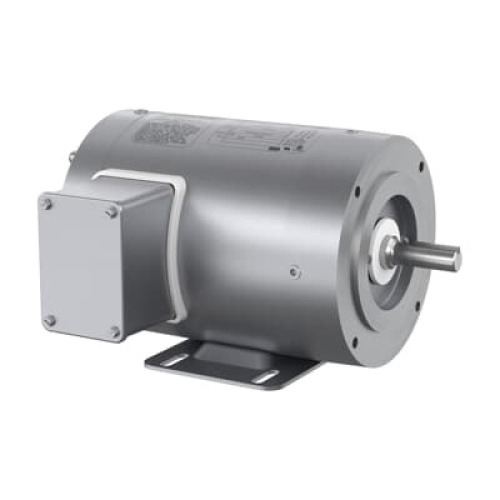

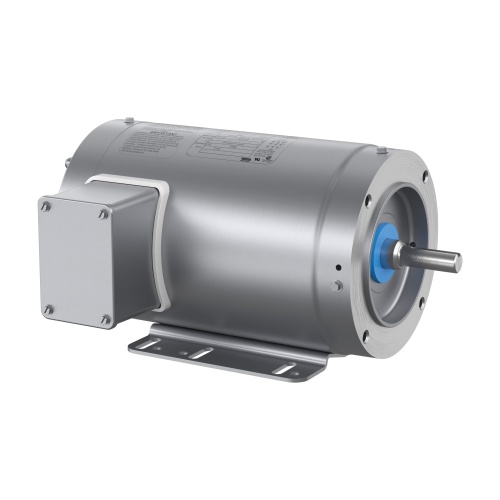

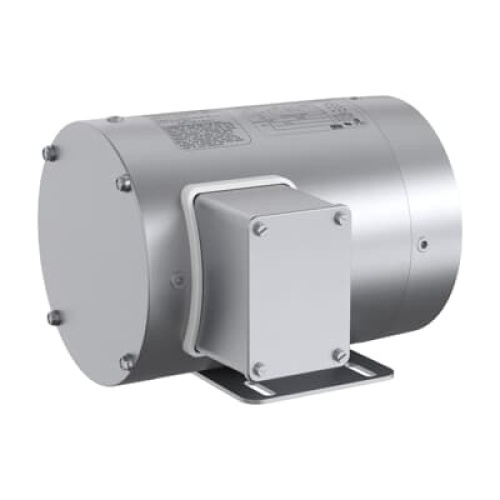

Baldor CESSWDM3546 1HP, 1745RPM, 3PH, 60HZ, 56C, 3524M, Totally Enclosed Non-Vented, F1, N
Normally In Stock
Baldor CESSWDM3546 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ Totally Enclosed Non-Vented
Condition: New
CALL FOR LEAD TIME$2144.70
Sale Price
$1787.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor CESSWDM3546 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 1 HP @ 60 HZ 1745 RPM,1800 RPM @ 60 HZ 1.450 A @ 460.0 V
2.900 A @ 230.0 V
3 A @ 208.0 V 60.00 Hz Stainless Steel Totally Enclosed Non-Vented
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Frame Model
56C
Motor Amperage (Full Load)
3 Amp
Motor Amperage (Full Load)
2.9 Amp
Motor Amperage (Full Load)
1.4 Amp
Motor NEMA Design
NEMA Design M
Motor Enclosure Type
Totally Enclosed Non-Vented
Manufacturer
Baldor-Reliance
Motor Construction
Stainless Steel
Features
Corrosion-resistant 300 series stainless steel frame, endplates, conduit box, shaft, base, and hardware. The finish is polished stainless steel for easy cleaning.
Simple maintenance with four removable condensation drain plugs for complete drainage, regardless of position to extend the life of the motor.
The nameplate is laser-etched directly onto the motor band, providing quick and easy access to essential technical information
Rotating non-contact labyrinth seals on both the drive end (DE) and opposite drive end (ODE) for enhanced durability
Upgrade to stainless steel, designed for harsh food processing environments, resistant to rust and deterioration from caustic sanitizing to minimize risk of food safety violations.
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
