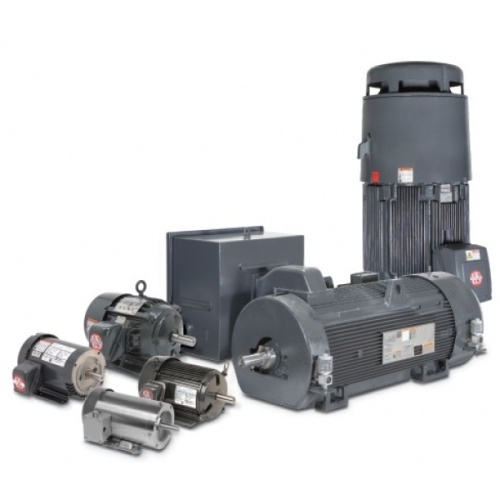

Nidec DH20S1BF - Open Drip Proof, 3 Phase, 20 HP
Code: 312261
Nidec DH20S1BF - Open Drip Proof - 3 Phase - 20 HP - 3600 RPM - 215T Frame - 60 Hz - 460 Max Volt - Class F Insulation
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.

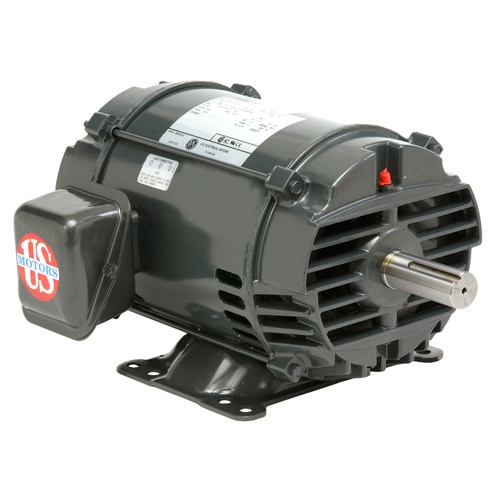

Replacement Products
Description
Nidec DH20S1BF - The Special Application Three Phase motor is designed for elevator applications where dry hydraulic motors are required, typically for buildings with five stories or less. It features an open drip-proof (ODP) design and is rated for intermittent duty operation in a 40°C ambient temperature. The motor is certified by CSA and recognized by UL as a component. With a speed of 1800 RPM and F1 assembly, it is well-suited for elevator systems. The motor has Class F insulation and a 1.00 service factor, ensuring reliable performance and durability. It utilizes a ball bearing design and comes with a generous 72" lead length for convenient installation.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
215T
Motor Horsepower
20 HP
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Manufacturer
Nidec
Motor Enclosure Type
Open Drip Proof
Features
CSA®† Certified and UL®† Component Recognized
1800 RPM
80 Starts Per Hour (100 Starts Per Hour With De-rate in HP)
F1 Assembly
60 Hertz
Class F Insulation
1.00 Service Factor
Intermittent Duty Rated For Operation in a 40°C Ambient Temperature
Ball Bearing Design
72" Lead Length
