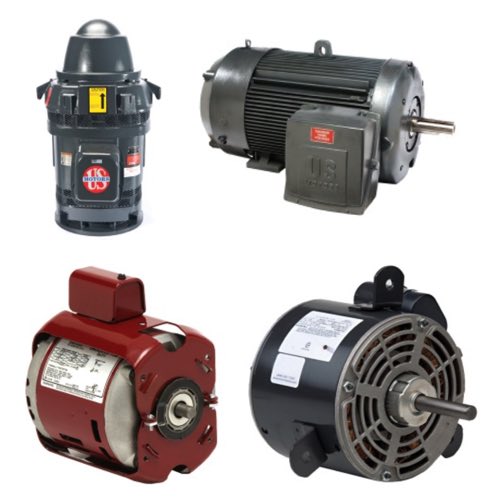

Nidec Motors
Motors from Nidec Motor Corporation are known worldwide for their performance and innovation. They might also be the most diversified with respect to the number of different types including pump motors, commercial motors and industrial motors. Their AC electric motors come in single phase and three phase and can handle everything from sever duty to hazardous location applications.
Another area that the Nidec corporation emphasizes is integrating even more advanced technology into their motor designs. Motors that Nidec produces often have built-in sensors and control systems. These motors can thus operate in a kind of "closed loop" mode, where they not only receive electronic commands to "go to a certain position" or "operate at a certain speed," but can also send back electronic confirmation that they have done what they were told to do. What's more, they can also send back a stream of information about their current condition in case there is a further need to alter the commands they are receiving.
Nidec motors' durability and reliability are their most notable strong points. They are designed to hold up under not only a wide range of temperatures but also in high-dust and high-moisture environments. And, of course, in order for them to do that, they must also be properly maintained. The long life promised by the robust overall design of these motors is even longer when proper maintenance is done.
Products
Sort By:
Nidec BR12S2ACR3 - TEFC, 0.5 HP, 3 Phase, 460 Volt
$1686.93
$1888.90
Nidec BR12S2ACR3 - Definite Purpose Totally Enclosed Fan Cooled (TEFC) Motor FCR Series Brakemotor is designed for applications requiring manual release, brake torque adjustments, and high cycling, such as bulk material handling equipment, conveyors, cranes, and hoists. It features Class F insulation, a pressure die-cast aluminum alloy frame, and oversized non-regreasable ball bearings. The motor has a high braking torque with a 180-volt DC brake coil and an included rectifier. It operates with a 1.15 service factor at 60 Hertz in 40°C ambient conditions for continuous duty. Additional features include an easily adjustable air gap and compatibility with multiple voltage settings: 60 Hertz at 208-230/460 volts and 50 Hertz at 380 volts with a 1.0 service factor.
Nidec BR12S2AC3 - TEFC, 0.5 HP, 3 Phase, 460 Volt
$1768.20
$1979.90
Nidec BR12S2AC3 - Definite Purpose Totally Enclosed Fan Cooled (TEFC) Motor FCR Series Brakemotor is designed for applications requiring manual release, brake torque adjustments, and high cycling, such as bulk material handling equipment, conveyors, cranes, and hoists. It features Class F insulation, a pressure die-cast aluminum alloy frame, and oversized non-regreasable ball bearings. The motor has a high braking torque with a 180-volt DC brake coil and an included rectifier. It operates with a 1.15 service factor at 60 Hertz in 40°C ambient conditions for continuous duty. Additional features include an easily adjustable air gap and compatibility with multiple voltage settings: 60 Hertz at 208-230/460 volts and 50 Hertz at 380 volts with a 1.0 service factor.
Nidec BR12S2A3 - TEFC, 0.5 HP, 3 Phase, 460 Volt
$1598.70
$1790.10
Nidec BR12S2A3 - Definite Purpose Totally Enclosed Fan Cooled (TEFC) Motor FCR Series Brakemotor is designed for applications requiring manual release, brake torque adjustments, and high cycling, such as bulk material handling equipment, conveyors, cranes, and hoists. It features Class F insulation, a pressure die-cast aluminum alloy frame, and oversized non-regreasable ball bearings. The motor has a high braking torque with a 180-volt DC brake coil and an included rectifier. It operates with a 1.15 service factor at 60 Hertz in 40°C ambient conditions for continuous duty. Additional features include an easily adjustable air gap and compatibility with multiple voltage settings: 60 Hertz at 208-230/460 volts and 50 Hertz at 380 volts with a 1.0 service factor.
Nidec JS100UPR - ODP, 1 HP, 1 Phase, 230 Volt
$321.10
$360.10
Nidec JS100UPR - Special Application Single Phase, Open Drip Proof (ODP) Jet Pump motor, available in square flange and C-face configurations, is designed for applications such as jet pumps, booster pumps, centrifugal pumps, and lawn sprinkler pumps. Key features include a 303 stainless steel shaft with specific threading (7/16-20 UNF2A for C-face and 1/2-20 UNC-2A for square flange), ball bearings with a locked drive end bearing, and continuous duty operation at 60 Hz. The motor also has an EZ-Access motor cover, operates in a 40°C ambient environment, and includes an automatic reset thermal overload protector. It features a round frame without a base, NEMA® 56C C-face or square flange mounting, and power leads for proper connection to a pressure switch. Additionally, it has a voltage selector switch for models ending in "-2V" and "UPR".
Nidec 481872 - ODP, 1.5 HP, 3 Phase, 440 Volt
$373.53
$406.90
Nidec 481872 - Blower/Fan Motor, 1.5 HP, 440 Volt, 1800 RPM, 60 Hz, 50 Hz
Nidec BR34S2ACR3 - TEFC, 0.75 HP, 3 Phase, 460 Volt
$1727.57
$1934.40
Nidec BR34S2ACR3 - Definite Purpose Totally Enclosed Fan Cooled (TEFC) Motor FCR Series Brakemotor is designed for applications requiring manual release, brake torque adjustments, and high cycling, such as bulk material handling equipment, conveyors, cranes, and hoists. It features Class F insulation, a pressure die-cast aluminum alloy frame, and oversized non-regreasable ball bearings. The motor has a high braking torque with a 180-volt DC brake coil and an included rectifier. It operates with a 1.15 service factor at 60 Hertz in 40°C ambient conditions for continuous duty. Additional features include an easily adjustable air gap and compatibility with multiple voltage settings: 60 Hertz at 208-230/460 volts and 50 Hertz at 380 volts with a 1.0 service factor.
Nidec NT32P1BE - TEFC, 1.5 HP, 3 Phase, 460 Volt
$1598.51
$1877.20
Nidec NT32P1BE - Vertical Solid Shaft Motor, 1.5 HP, 460 Volt, 3600 RPM, 60 Hz, Rolled Steel
Nidec NT1P2BE - TEFC, 1 HP, 3 Phase, 460 Volt
$1257.55
$1476.80
Nidec NT1P2BE - Vertical Solid Shaft Motor, 1 HP, 460 Volt, 1800 RPM, 60 Hz, Rolled Steel
Nidec NT32P2BE - TEFC, 1.5 HP, 3 Phase, 460 Volt
$1452.38
$1705.60
Nidec NT32P2BE - Vertical Solid Shaft Motor, 1.5 HP, 460 Volt, 1800 RPM, 60 Hz, Rolled Steel
Nidec NT2P1BE - TEFC, 2 HP, 3 Phase, 460 Volt
$1689.28
$1983.80
Nidec NT2P1BE - Vertical Solid Shaft Motor, 2 HP, 460 Volt, 3600 RPM, 60 Hz, Rolled Steel
Nidec NT1P3BE - TEFC, 1 HP, 3 Phase, 460 Volt
$1704.78
$2002.00
Nidec NT1P3BE - Vertical Solid Shaft Motor, 1 HP, 460 Volt, 1200 RPM, 60 Hz, Rolled Steel
Nidec WDS3P1A14C - TEFC, 3 HP, 3 Phase, 460 Volt
$1982.02
$2982.20
Nidec WDS3P1A14C - All Stainless Steel Washdown Three Phase motor, designed for applications in food processing, canning, meat packing, bakeries, dairies, and pharmaceutical manufacturing, features a robust construction entirely made of stainless steel. With a 40°C ambient rating and NEMA® Design B compliance, it ensures reliability in diverse environments. Its INVERTER GRADE® insulation system meets NEMA® MG-1 Part 31 standards, while a 303 stainless steel shaft enhances durability. The motor incorporates multiple stainless steel T-type drains, is Totally Enclosed Fan Cooled (TEFC) in most cases, and includes rust inhibitor on the rotor. BISSC® certification ensures compliance with industry sanitation standards, while VBX® Bearing Isolators by Inpro/Seal and double-sealed ball bearings enhance longevity. Other features include a laser-etched oversized nameplate, RTV-sealed lead exit holes, moisture-resistant gasketed conduit box with NPT lead holes, and easy-to-read connection leads, ensuring ease of maintenance and sanitation in demanding environments.
