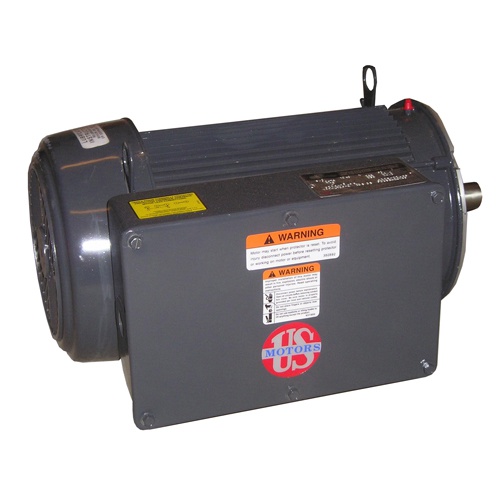

Nidec FDU3CM2K18C - TEFC, 1 Phase, 3 HP

Nidec FDU3CM2K18C - The Special Application Agriculture motor is a single-phase, totally enclosed fan-cooled (TEFC) motor designed for high torque agricultural applications. It has Class F insulation and operates in a 40°C ambient temperature. The motor features a typical starting torque of 300% of full load and is assembled in the F1 position for easy installation. With an extruded aluminum frame (180-210 Frame), the motor is durable and reliable. It includes a manual reset thermal overload protector for safety and a plastic fan and fan cover for efficient cooling. The motor has double shielded bearings with low-temperature grease and regreasable shaft end. It offers removable condensation drains, a fully gasketed steel conduit box, and die-cast aluminum brackets with steel bearing inserts. This motor is suitable for agitators, augers, compressors, conveyors, feeders, hay hoists, barn cleaners, manure pumps, and silo unloaders in the agricultural industry.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Insulation Class	Class F Insulation
Motor Horsepower	3 HP
Motor Frame Model	184TC
Motor RPM's	1800 RPM
Motor Voltage	208-230 Volt
Motor Voltage Phases	1 Phase
Manufacturer	Nidec
