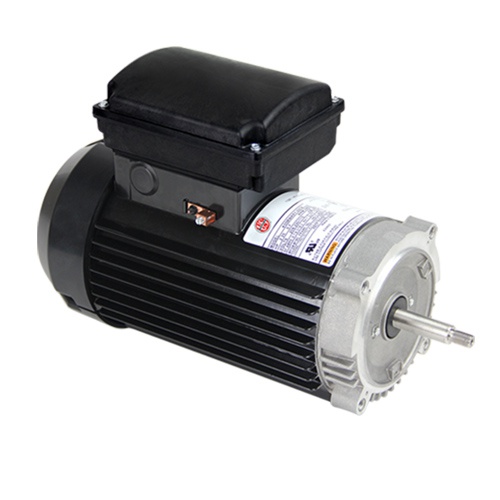

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Nidec ETE796 - TEFC, 3600 RPM, 2.25 HP
Normally In Stock
Code: 310726
Nidec ETE796 - Totally Enclosed Fan Cooled - 2.25 HP - 3600 RPM - 56J Frame - 60 Hz - 115 Max Volt - Class B Insulation
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$660.37
Sale Price
$550.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Nidec ETE796 - The AQUA-SHIELD PRO® motors are designed for pool and spa applications, featuring a switchless design, finned aluminum frame, and 5.5" frame diameter (Category "S" & "J"). They are available in Square Flange and C-Flange options, both premium energy efficient and total horsepower rated. With a 50°C ambient rating, Class B insulation, and a 300 series stainless steel shaft, these motors offer durability and reliable performance in demanding conditions. They are thermally protected and designed for continuous duty. The motors feature a totally enclosed, fan cooled IPX5 enclosure, providing protection against low-pressure water jets and reducing moisture intrusion risks. With triple bearing protection and a finned aluminum frame, these motors ensure efficient operation and improved heat dissipation. They are available with a discount symbol for cost savings. The AQUA-SHIELD PRO® motors are the ideal choice for wet and humid environments, delivering reliability and performance for pool and spa systems.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Frequency
60 Hz
Motor RPM's
3600 RPM
Motor Voltage
115 Volt
Motor Voltage
208-230 Volt
Motor Insulation Class
Class B Insulation
Motor Frame Model
56J
Manufacturer
Nidec
Motor Horsepower
2.25 HP
Features
AQUA-SHIELD PRO TEFC Pool & Spa Motor
Switchless Design 5.5" Frame Dia.
Square Flange Category "S"
Finned Aluminum Frame IPX5
THP Rated 1081 Design
