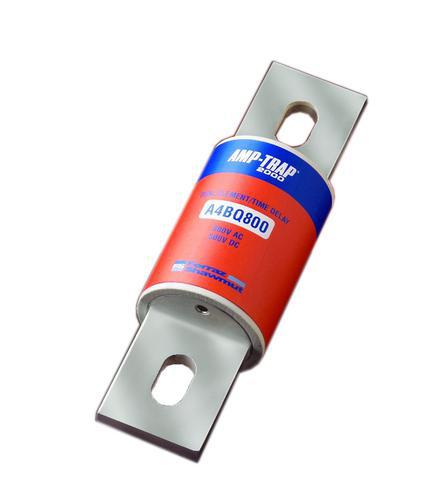

Mersen A4BQ1200 Fuse Class L 1200 Amp
Normally In Stock
Code: 29294
Mersen A4BQ1200, 1200 Amp, 600 Volts, Class L
Condition: New
Usually Ships Same Day or Next Day.$1209.73
Sale Price
$1008.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen A4BQ1200, 1200 Amp, 600 Volts, UL Class L, Time Delay, Most Current Limiting Class L, Physical Size: 2 1/2" x 10 3/4", Arc Flash Mitigating, Mains, Feeders, Large Motors, AC Voltage Rating: 600, DC Voltage Rating: 500, Interrupting Rating: 200,000 AIC @ 600VAC, DC Interrupting Rating: 100,000 AIC, UL Listed, CSA Certified,
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class L
Fuse Response Time
Time Delayed
Fuse Protection Type
Arc Flash Mitigating
Fuse Protection Type
Mains
Fuse Protection Type
Feeders
Fuse Protection Type
Large Motors
Manufacturer
Mersen
Fuse Size
2.5" X 10.75"
Fuse Amperage Rating
1200 Amp
Component
Fuse
Features
Fastest operation under short circuit conditions: Let-thru currents are typically 20 percent lower, with a corresponding let-thru energy (clearing I2t) up to 40% lower than the next fastest Class L fuse
Time-delay for high inrush loads such as motors and transformers, without nuisance opening
300kA interrupting rating - self-certified, UL witnessed tests
Most current-limiting for lowest peak let-thru current
even at fault currents up to 300kA
Recommended for Arc Flash energy reduction
Pure silver links ensure lowest let-thru current and longer fuse life
Easy 2-to-1 selectivity for prevention of nuisance shutdowns and “blackouts”
Rejection-style design prevents replacement errors
High-visibility orange label gives instant brand recognition
Reduced inventory because A4BQ can replace all older types of Class L fuses now in-service
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching
Optional mechanical TA indicator (100-6000A). Please contact factory for special trigger actuator
