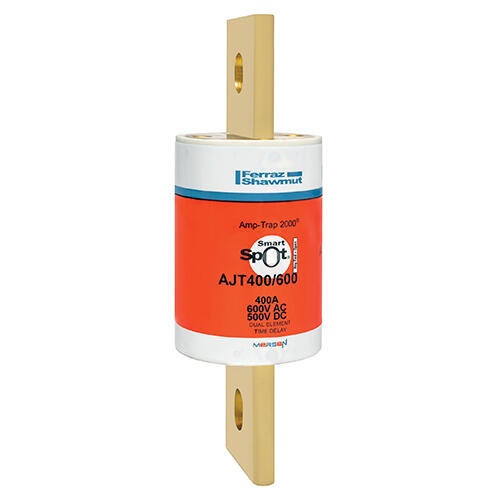

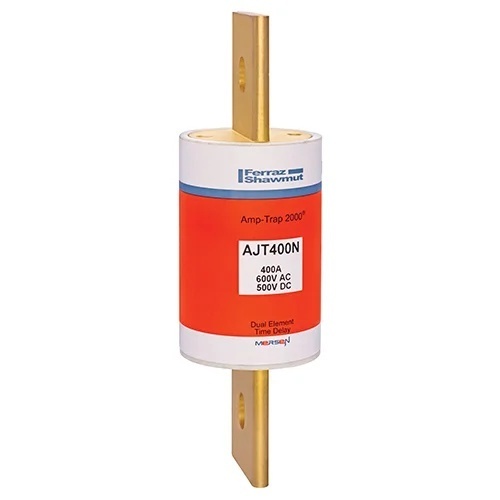

Mersen AJT400 Fuse Class J 400 Amp
Normally In Stock
Code: 28715
Mersen AJT400, 400 Amp, 600 Volts, Class J
Condition: New
Usually Ships Same Day or Next Day.$650.87
Sale Price
$542.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen AJT400, 400 Amp, 600 Volts, UL Class J, Time Delay, Extremely Current Limiting, Physical Size: 2 1/8" x 7 1/8", Motor circuits and Transformers, Mains, Feeders & Branch Protection, AC Voltage Rating: 600, DC Voltage Rating: 500, Interrupting Rating: 200,000 AIC @ 600VAC, DC Interrupting Rating: 100,000 AIC, UL Listed, CSA Certified,
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class J
Fuse Response Time
Time Delayed
Fuse Protection Type
Branch Circuit Protection
Fuse Protection Type
Mains
Fuse Protection Type
Feeders
Fuse Protection Type
Motor Circuits
Fuse Protection Type
Transformer Protection
Manufacturer
Mersen
Fuse Size
2-1/8" X 7-1/8"
Fuse Amperage Rating
400 Amp
Component
Fuse
Features
Non-indicating or solid state SmartSpot visual blown fuse indicator
Time-delay for motor starting and transformer inrush
300kA interrupting rating - self-certified, UL witnessed tests
Extremely current-limiting for low peak let-thru current
Most current-limiting UL class fuse
Recommended for Arc Flash energy reduction
Small footprint requires less mounting space and allows smaller, more economical fuse blocks
Easy 2-to-1 selectivity for prevention of nuisance shutdowns
Unique Class J dimensions prevent replacement errors
High-visibility orange label gives instant brand recognition
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching

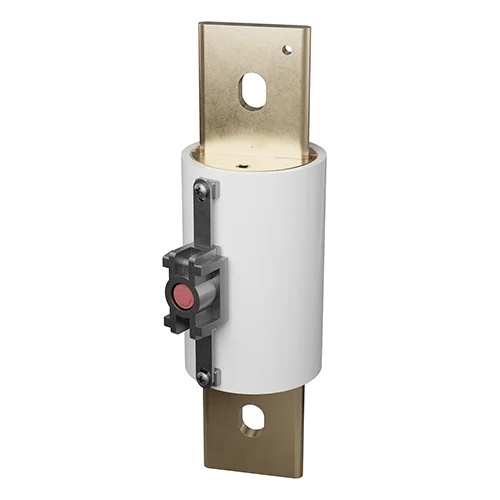

Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
