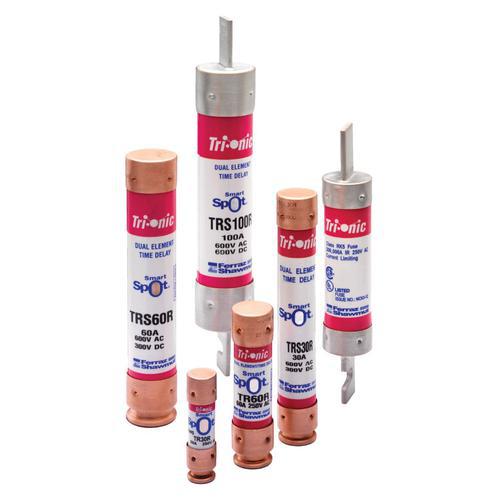

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Mersen TRS250RID Fuse Class RK5 250 Amp
Normally In Stock
Code: 28647
Mersen TRS250RID, 250 Amp, 600 Volts, Class RK5
Condition: New
Usually Ships Same Day or Next Day.$426.98
Sale Price
$355.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen TRS250RID, 250 Amp, 600 Volts, UL Class RK5, Time Delay, Current Limiting, Physical Size: 2 9/16" x 11 5/8", Motor circuits and Transformers, Mains, Feeders & Branch Protection, AC Voltage Rating: 600, DC Voltage Rating: 600, Interrupting Rating: 200,000 AIC @ 600VAC, DC Interrupting Rating: 100,000 AIC, UL Listed, CSA Certified,
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class RK5
Fuse Response Time
Time Delayed
Fuse Protection Type
Branch Circuit Protection
Fuse Protection Type
Mains
Fuse Protection Type
Feeders
Fuse Protection Type
Motor Circuits
Fuse Protection Type
Transformer Protection
Manufacturer
Mersen
Fuse Size
2-9/16" X 11-5/8"
Fuse Amperage Rating
250 Amp
Component
Fuse
Features
Time-delay
Current-limiting
AC & DC rated
Optional solid state SmartSpot blown fuse indicator
Time-delay for motor start-ups and transformer inrush currents without nuisance opening
Current-limiting for low peak let-thru current
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
Easy-to-read label for quick brand recognition and replacement
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching and high current limitation
