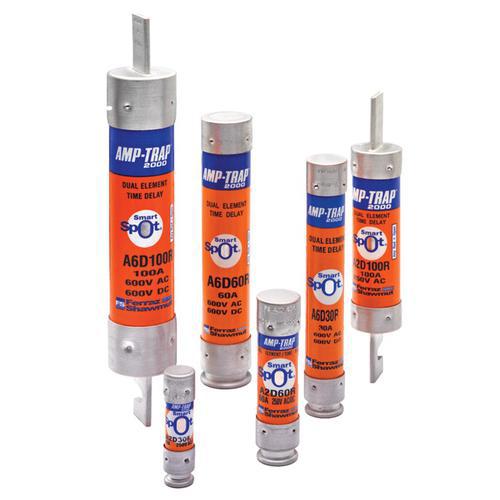

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Mersen A2D2 8/10R Fuse Class RK1 2.8 Amp
Normally In Stock
Code: 28529
Mersen A2D2 8/10R, 2 8/10 Amp, 250 Volts, Class RK1
Condition: New
Usually Ships Same Day or Next Day.$33.43
Sale Price
$27.86
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen A2D2 8/10R, 2 8/10 Amp, 250 Volts, UL Class RK1, Time Delay, Current Limiting, Physical Size: 9/16" x 2", Arc Flash Mitigating, Mains, Feeders & Branch Protection, AC Voltage Rating: 250, DC Voltage Rating: 250, Interrupting Rating: 200,000 AIC @ 600VAC, DC Interrupting Rating: 100,000 AIC, UL Listed, CSA Certified,
Specifications
Fuse Voltage Rating
250 Volts
Fuse Type (UL)
Class RK1
Fuse Response Time
Time Delayed
Fuse Protection Type
Arc Flash Mitigating
Fuse Protection Type
Branch Circuit Protection
Fuse Protection Type
Mains
Fuse Protection Type
Feeders
Manufacturer
Mersen
Fuse Size
9/16" X 2"
Fuse Amperage Rating
2.8 Amp
Component
Fuse
Features
Non-indicating or Solid state SmartSpot visual blown fuse indicator
Time-delay for motor starting and transformer inrush currents without nuisance opening
600VAC & 600VDC dual rated
300kA interrupting rating - self-certified, UL witnessed tests
Extremely current-limiting for low peak let-thru current
Recommended for Arc Flash energy reduction
Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs”
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
High-visibility orange label gives instant brand recognition
Reduced inventory by taking the place of class RK5, K, and H fuses
Metal-embossed date and catalog number for easier traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
