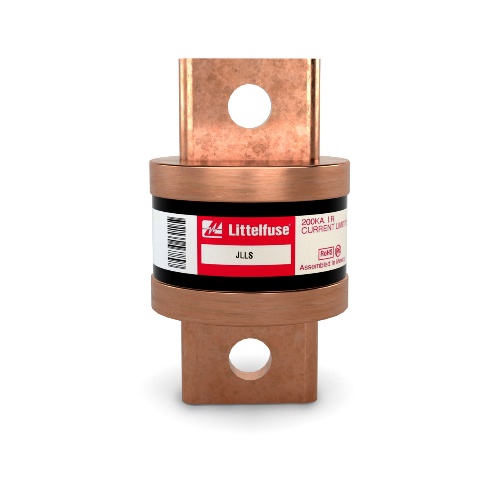

Littelfuse JLLS900 Fuse Class RK5 900 Amps
Normally In Stock
Code: 27918
Littelfuse Fuse JLLS900, 900 Amps, 600 Volts, Class T
Condition: New
Usually ships same day or next day$1179.90
Sale Price
$983.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse Fuse JLLS900, 900 Amps, 600 Volts, UL Class T, Very Fast Acting, Extremely Current Limiting, Physical Size: 2.63" x 5.27", Compact Design, Variable Speed Drive Protection, AC Voltage Rating: 600, DC Voltage Rating: 300, Interrupting Rating: 200,000 AIC @ 600VAC, DC Interrupting Rating: 20,000 AIC, UL Listed, CSA Certified, RoHS Compliant
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class RK5
Fuse Response Time
Very Fast Acting
Fuse Protection Type
Variable Speed Drive Protection
Manufacturer
Littelfuse
Fuse Size
2" X 5.271"
Fuse Amperage Rating
900 Amp
Component
Fuse
Features
Extremely current-limiting
Compact design
200 kA interrupting rating
JLLN 35–60 amperes available with PCB mounts
