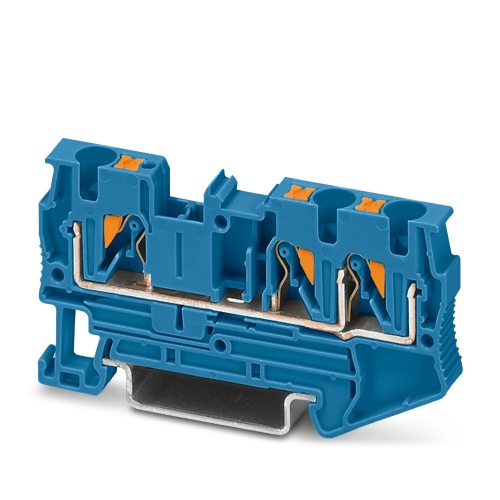

Phoenix Contact 3211775 Feed-through terminal block PT 4-TWIN BU
Normally In Stock
Code: 27200
PT 4-TWIN BU Phoenix Contact 3211775 Phoenix Contact PT 4-TWIN BU. Terminal Block 6.2mm Blue 3 Conductor Single through Push-In Connection, up to 500V, 41A, 12-26AWG (Sold in packs of 50)
Condition: New
Usually Ships Same day or Next Day$2.52
Sale Price
$2.10
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3211775 A feed-through terminal block with a nominal voltage of 800V and a nominal current capacity of 32A is available, featuring three push-in connections with rated cross sections ranging from 0.2-6mm2. The mounting type includes NS35/7.5 and NS35/15 options, while the terminal block itself has a blue coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Tested for railway applications
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Downloads
Phoenix 3211775 CAD data International.dxfPhoenix 3211775 CAD data International.pdfPhoenix 3211775 CAD data International.stpPhoenix 3211775 CAD Drawing.zipPhoenix 3211775 Certification English-2.pdfPhoenix 3211775 Certification English.pdfPhoenix 3211775 Manufacturers declaration International-2.pdfPhoenix 3211775 Manufacturers declaration International-3.pdfPhoenix 3211775 Manufacturers declaration International-4.pdfPhoenix 3211775 Manufacturers declaration International-5.pdfPhoenix 3211775 Manufacturers declaration International.pdfPhoenix 3211775 Safety note English.pdfPhoenix 3211775 Spec Sheet.pdfPhoenix 3211775 Tender Text English.zipPhoenix 3211775 User instructions for the Ex Area International.pdf
