Phoenix Contact 1156004 Distributor box SACB-8/16-C QO
Normally In Stock
Code: 271576
Phoenix Contact 1156004 Sensor/actuator box - SACB-8/16-C QO, 5-position *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships within 7-14 days. Call for ship time.$147.56
Sale Price
$122.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

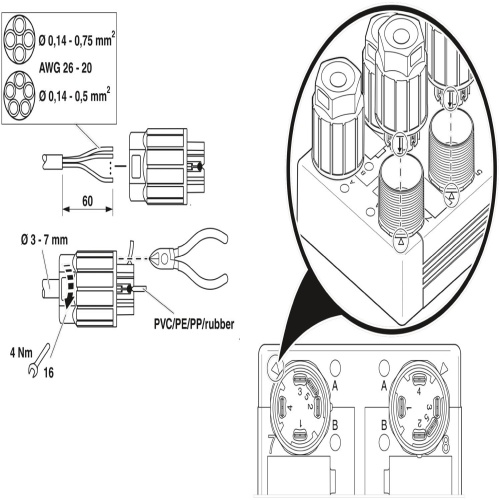

Phoenix Contact 1156004 A distributor box with a QUICKON connection method is available in two different cable sizes, 0.14 mm² to 0.75 mm², and features eight slots that accommodate five positions, arranged in a double configuration, with no status display provided. The master cable connection is pluggable using a screw connection at 180°, and it does not have shielding. When connecting up to five conductors, the maximum allowable cross-sectional area of the cables is 0.5 mm².
Specifications

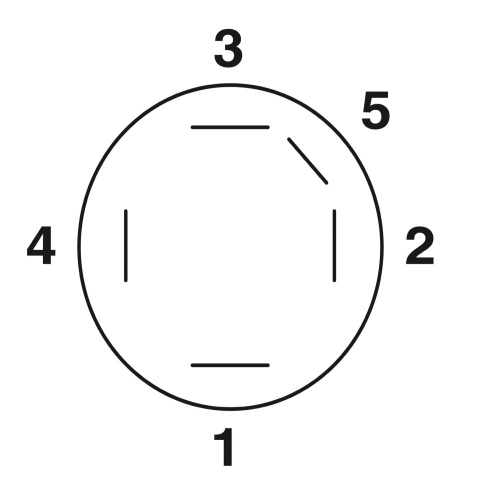

Cable Number of Positions
5-Position
Manufacturer
Phoenix Contact
Component
Sensor-Actuator Box
Features
Safety in the field, thanks to molded housing and high degree of protection
Convenient: increased machine availability thanks to quick and easy diagnostics
Innovative and time-saving assembly with insulation displacement connection
Flexible: distributor box with connector hood for on-site assembly
