Code: 255620

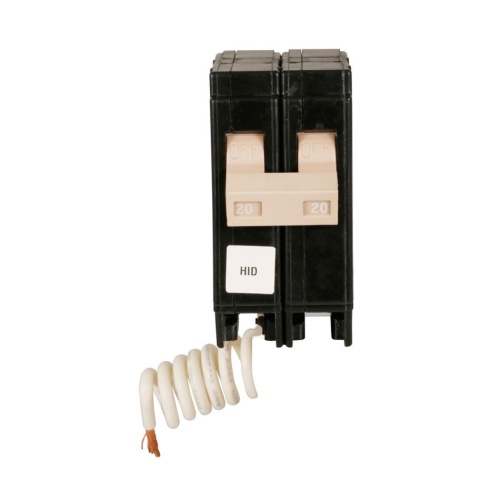

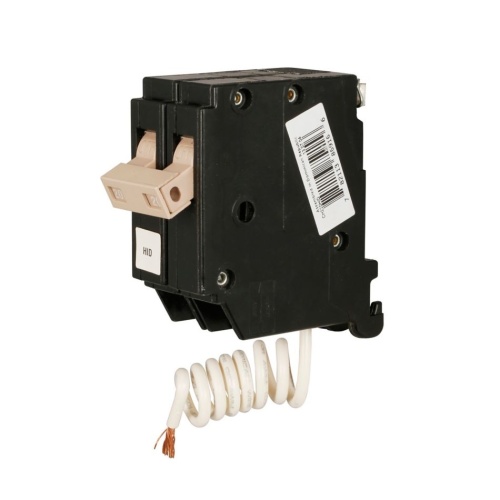

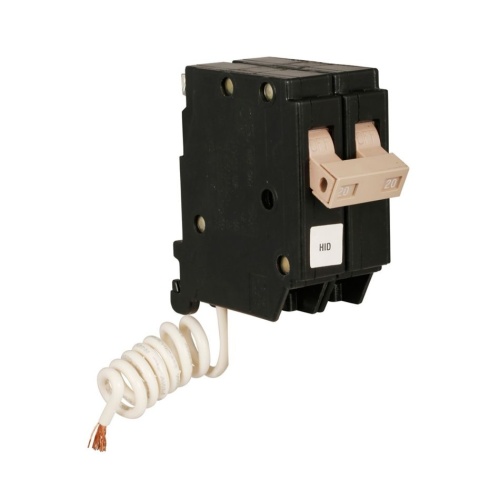

Eaton CH220HID Thermal Magnetic Circuit Breaker - 240 Max Volt 20 Amp
Normally In Stock
Eaton CH220HID - Thermal Magnetic Circuit Breaker - 240 Max Volt - 20 Amp - Two Pole
Condition: New
Usually ships Same Day or Next Day$228.61
Sale Price
$190.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton CH220HID - Type CH 3/4-Inch high intensity discharge circuit breaker - 20 A - 10 kA - Two-pole - 120/240V - CH - Common breaker trip - #14-8 AWG Cu/Al - CH - Type CH Loadcenters
Specifications
Breaker Amperage Rating
20 Amp
Breaker Number of Poles
Two Pole
Breaker Voltage Rating
240 VAC
Breaker UL Rating
UL 489
Manufacturer
Eaton
Component
Thermal Magnetic Circuit Breaker
Breaker Overcurrent Protection Rating
10 Ka
Features
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks.
The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. Handles are marked with ON-OFF indication and ampere rating of the breaker.
The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously.
